NEW NORTHTECH NT-300PBX

MAIN MOTOR HP: 40 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 224/112 Amps
FEED HP: 2 HP
FEED SYSTEM: Conveyor Belt
DRIVE SYSTEM: Electric Motor / Gear Box
FEED SPEED RANGE: 0-130 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1/4 HP
ELEVATION STYLE: Programmable Controller
ELEVATION SYSTEM: Dual Jack Screw
TOTAL MACHINE HP: 42-1/4 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt 60Hz
CONTROL VOLTAGE: 220 Volt
ASSISTED START: Inverter Controlled
PROGRAMABLE: Elevation
ADJUSTABLE OPERATOR PANEL: Pedastal
PASS-LINE: 30-1/2''
CUTTING ENVELOPE: 12'' x 23''
MIN. WORKING LENGTH: 19'' Hold Down to Hold Down
MIN. WORKING WIDTH: 1-1/2''
MAX. WORKING WIDTH: 23''
MIN. WORKING THICKNESS: .170''
MAX. WORKING THICKNESS: 12''
ABLE TO CUT ANGLE: Yes
BLADE SIZE: 2'' x 188''
NO. OF TEETH ON BLADE: 146 Tooth
TOOTH SPACING: 1.5'' x 1.25'' x 1.3'' x 1''
BLADE KERF: .086''
BLADE SPEED: 4250 - 7500 FPM
CLEANING SYSTEM: Wheel Scrapers
TRACKING STYLE: Manual Adjustment
TENSION STYLE: Auto Hydraulic
VERTICAL TRAVEL: 12''
DUST COLLECTION REQUIREMENT: 4363 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 4'' Ports
ARBOR DIAMETER: 65 MM
DIGITAL DISPLAY: Elevation / Tilt
CONVEYOR: 11-3/16'' x 217''

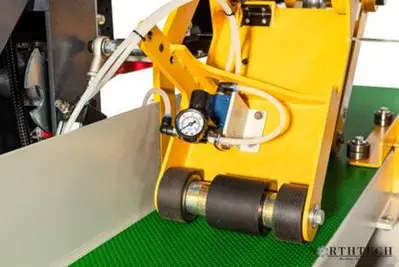

HOLD DOWN STYLE: (2) Pneumatic Hold Downs
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
REAR E STOP: Yes
SAFETY FEATURE: Machine Shut Down with Blade Tension Loss
GUARDING: Full Enclusure
OPERATION STYLE: Manual
OILER: Blade Mister
FENCE TYPE: Fixed
FENCE DIMENSIONS: 1-3/4'' x 38"
TILT-ABLE: 45-1.2 Degrees
BLADE WHEEL DIMENSIONS: 1-3/4'' x 28''
WHEEL CONSTRUCTION: Cast
FRAME CONSTRUCTION: 1/4'' Steel
WORKTABLE DIMENSIONS: 11-5/8'' x 106-1/2''
SIDE WORK TABLE DIMENSIONS: 11-3/4'' x 106-1/2''
TABLE CONSTRUCTION MATERIAL: Steel
MEASURING METHOD: Encoder
DECIBEL RATING: 77 dB
NET WEIGHT: 3060 Lbs.
GROSS WEIGHT: 3360 Lbs.
MACHINE DIMENSIONS: 90'' x 103'' x 83''
PACKAGING DIMENSIONS: 90'' x 115'' x 89''
