NEW NORTHTECH NT-IGLUE450DTG

NT-iGlue450 Dovetail Gluer Automatic 18″ The Northtech iGlue is the revolutionary new gluer that quickly and accurately applies glue to dovetail and similar joinery. You literally just stick your part in and the iGlue scans and applies glue all in one pass and all in seconds with no required setups, no mess, and no wasted glue. This machine has auto thickness compensation and is able to apply glue to either the mortise or tenon at the rate of over 100 dovetails/minute. The iGlue even comes with an automatic water bath sleep mode that keeps the glue tip fresh and ready to go. This machine works with standard PVA white glue and can be used for any material. The Northtech iGlue and iDovetail are patent pending and the only new innovations in the dovetail market.

MACHINE HP: .2 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 1 Phase 220 3 Phase 230/460
AMP REQUIREMENT: .15/.3
FEED SYSTEM: Manual Feed
DRIVE SYSTEM: Servo Motor
FEED SPEED RANGE: 3-17 CM Per Second
VARIABLE FEED SPEED: Servo Controlled
TOTAL MACHINE HP: .2 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
CONTROL VOLTAGE: 24 Volt
PROGRAMABLE: Yes
TOUCH SCREEN: I Phone or I Pad Controlled
PASS-LINE: 34-1/4''
MIN. WORKING LENGTH: 3''
MAX. WORKING WIDTH: 18-3/4''
MIN. WORKING THICKNESS: 0.24''
MAX. WORKING THICKNESS: 2''

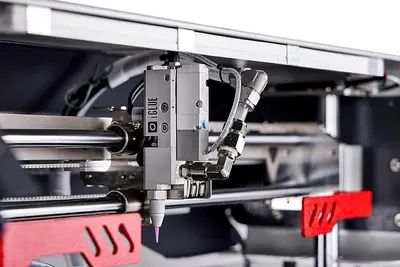

HEAD TYPE: Glue Cone
CLEANING SYSTEM: Water Bath Self Purge
HOLD DOWN STYLE: Pneumatic Depth Gauge
TOTAL CLAMPS: (2) Pneumatic Depth Gauges

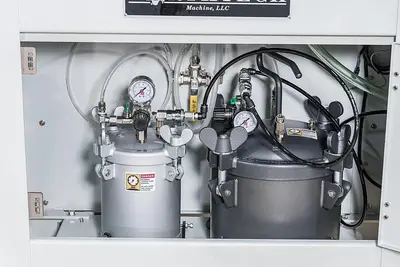

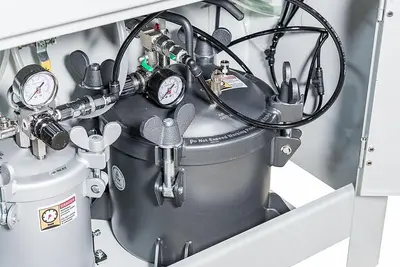

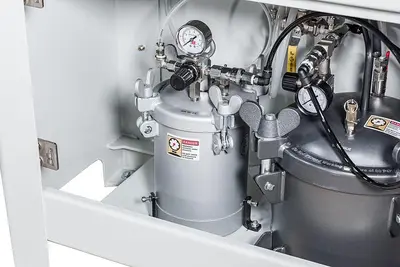

RESERVOIR CAPACITY: 1.32 Gallons Water 2.6 Gallons Glue
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: Front E- Stop
GUARDING: Enclosure
OPERATION STYLE: Manual Load
FENCE TYPE: Adjustable for Depth
FENCE DIMENSIONS: 3/4'' x 3''
MICRO FENCE: Micro Adjustable with Siko Counter
FRAME CONSTRUCTION: Steel Construction
TABLE CONSTRUCTION MATERIAL: Chrome Plated Steel
CHROME BED PLATE: Yes
AUTO CYCLE: Once Board Hits Trigger Fence
NET WEIGHT: 300 Lbs.
GROSS WEIGHT: 412 Lbs.
MACHINE DIMENSIONS: 38'' x 20'' x 44''
PACKAGING DIMENSIONS: 42'' x 21'' x 49''
