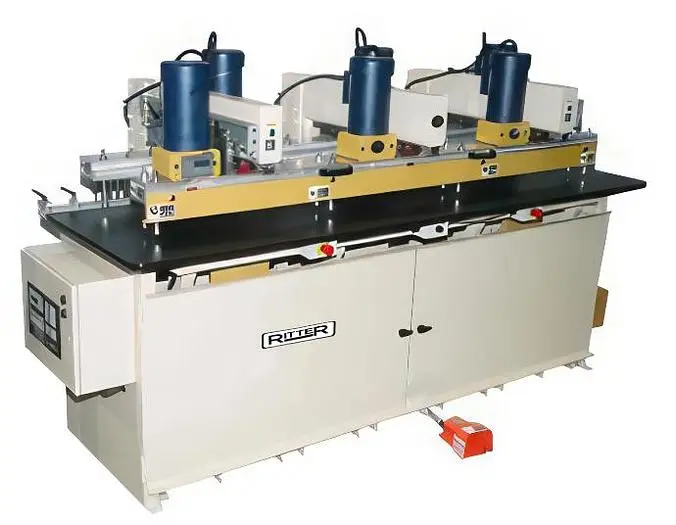

NEW RITTER R152

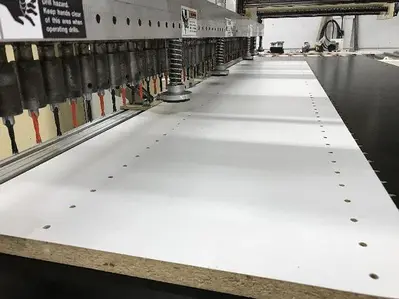

The Ritter R152 Line drill is a woodworking machine that can drill rows of evenly spaced holes in cabinet and furniture components. It has 152 spindles arranged in two rows of 76 each, and it can drill a full 8 foot panel with precision and speed. It is designed for closet panel production and features servo driven and programmable through boring, twin ball screw boring stroke control, and right and left hand work stations. (2) 76 Spindle Gear Driven Heads (6) 3 HP Spindle Drive Motors, TEFC  32mm Spindle Centers 10mm Bored Collets  (76) Right Hand, (76) Left Hand CNC Table Feed Control Electronic Drill Head Squaring Foot Actuated Boring Cycle Minimum hole spacing: 5” (127mm) Magnetic Controls Tooling Not Included

Drive Motors: 3 HP
Spindle Centers: 32mm
Collet Size: 10mm
Throat Capacity: 24"
First to Last Spindle: 2,400mm (94.488")
Maximum Material Thickness: 1.25"
Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 54″ x 136″
Table Area: 30″ x 108″
Shipping Weight: 4,432 LBS
Shipping Dimensions (L x W x H): 120″ L x 63″ W x 83" H
