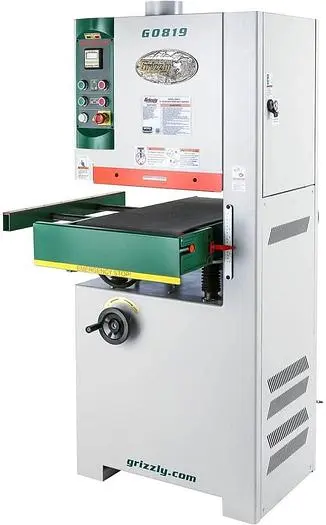

NEW GRIZZLY G0819

The G0819 15" 5 HP Open-End Wide-Belt Sander is for those looking to maximize efficiency in their wood shop. With a footprint of 19-1/2" x 27-1/2", this heavy-duty sander is capable of sanding a 30" wide workpiece in two passes. That’s a lot of capacity for a smaller sander! It takes less than 30 seconds to change out the 16" x 48" sanding belts. With a focus on rigidity and production work, the G0819 will have zero flex on a heavy pass. An adjustable side support slides out from the side of the machine, eliminating the need for aftermarket supports. The three conveyor speeds of 16.4, 23, and 32.8 feet per minute allow for adjustment based on the type wood being sanded. The G0819 has pneumatic oscillation speed control and a pulse-jet cleaning system to keep the electric oscillation sensor dust-free. Other quality features such as an amp meter, micro-adjustable graphite-felt platen, and emergency stop plate makes this a high-caliber machine. Like all Grizzly wide-belt sanders, the G0819 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. The G0819 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory FEATURES: Quick sandpaper changes Pneumatic belt tracking and tensioning Built-in pneumatic regulator/water separator Micro-adjustable graphite-felt platen Handwheel-controlled table elevation Inch/metric thickness scale Two rubber pressure rollers Digital amp/load meter Disc brake for emergency stops Safety shut-off bar

Sanding belt motor: 5 HP, 220V, single-phase, 30 A
Conveyor motor: 1/2 HP, 2.8A
Air requirement: 75 PSI, 2 CFM
Maximum board width: 15" single pass, 30" double pass
Maximum board thickness: 6"
Minimum board length: 12-5/8"
Sanding belt size: 16" x 48"
Sandpaper speed: 2300 FPM
Conveyor speed rate: 16.4, 23, 32.8 FPM
Conveyor table length: 24"
Platen type: 1-3/4" x 15-3/8" Graphite pad
Dust port size: 5"
Footprint: 19-1/2" x 27-1/2"
Overall size: 29-1/8" W x 38-1/2" D x 64-1/2" H
Approximate shipping weight: 930 lbs.
