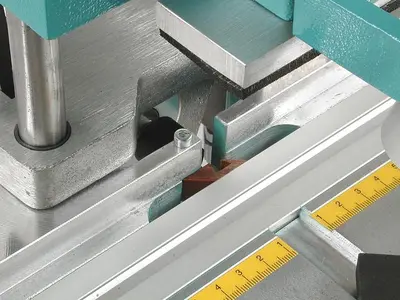

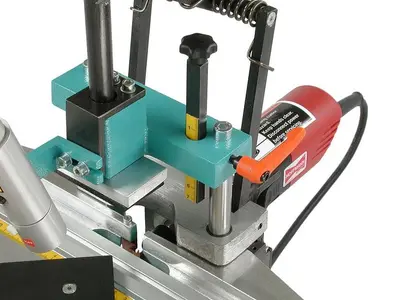

Hoffmann X-18 Machine Overview: Entry-level, manually operated dovetail routing machine to rout a single dovetail keyway with each machining cycle. For Dovetail Key sizes W-0, W-1, W-2 and W-3 Highlights: The X18 manual dovetail routing machine is a lightweight, more portable model with an open base design. This machine does not require a compressed air supply. Due to its limited routing height of 2 1/4” this machine is not suitable for joining most floater frames and shadow box moulding. Operation: The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting. Standard Features: Hoffmann Dovetail Routing Machine, model X18, ready for operation, W-2 solid carbide router bit installed, standard 45 degree center fence plate and square stop, toolkit and manual.
| Weight | 38 lbs. | 38 lbs. |
Power Supply: 120 volts – 4.4 Amps
Motor carriage guides: 16mm diameter guide rods, precision ground
Max. height routing: 2 1/4” – 57mm / moulding 3 1/2” – 89mm
Available router bits: W-0, W-1, W-2 and W-3
Dimensions W/D/H: 19 3/4” x 21 1/4” x 30 1/4”
Motor: 530 Watt motor
Motor speed: 29,000 rpm at idle
Installed router bit: W-2, solid carbide
Operation: manual– dual action design
Collet size: 1/4”
