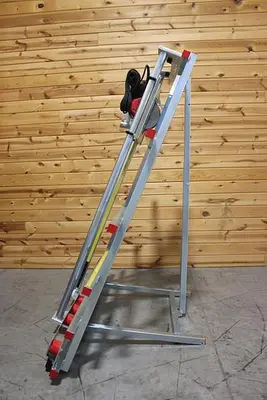

NEW SAFETY SPEED 6480-20C
Overview
The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price. These accessories include A portable folding stand and wheels allowing for moving the panel saw around your shop as your day-to-day operations change, General-purpose saw blade. a dust bonnet allowing you to set your machine up for collecting dust The 6480-20C Panel Saw replaces the Milwaukee Tool 6480-20 Panel Saw, a private label that Safety Speed Manufacturing made out of their Minnesota factory for Milwaukee Tool for the last 40 years. The 6480-20C includes a 3.25-horsepower Milwaukee Tool motor. The dust collection kit and vacuum for collecting as much dust as possible are optional accessories. This machine is only available within North America. Wheels and a folding stand provide portability for your compact panel saw and allow you to move it around your shop as you see fit. Standard Equipment 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor. Folding Stand Wheels Zinc-plated 1 ¾” steel guide tubes. 4 Nylatron roller bearing systems. Adjustable vertical and horizontal rulers. Quick change from vertical to horizontal cutting. Thin material pressure guard. Injection-molded plastic material rollers. Spring loaded counter balance system. Integrated dust collection bonnet. Extended warranty. TUV certified to UL/CSA standards
Specs
Dimensions: 60 × 11 × 70 in
Max. Crosscut: 50"/1270mm
Max. Rip Cut: 96"/2450mm
Cut Depth: 1 ¾"/45mm
Cut Accuracy: 1/32"/.8mm
Frame Length: 60"/ 525mm
Saw Blade Diameter: 8"/210mm
Saw Blade Bore Size: 5/8"
Daily Usage: 1-3 Hours
Rollers: 8
Motor volt and amperage: 15 amp, 120V, 7.5 amps, 220V
Machine Footprint: 15sqft
Machine Length: 60"/1525mm
Machine Height: 75"/1900mm
Machine Width with stand attached: 36"/915mm
