FEATURES • Segmented Chip Breaker • Full row of anti-kickback fingers for added operator safety • Chain and Gear Drive Train • Warranty is one-year parts • All machines are tested at our headquarters in New York prior to shipment providing trouble free start up

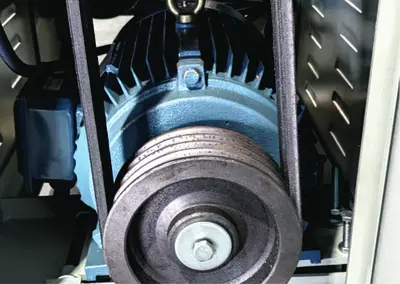

MAIN MOTOR HP: 10HP
AMP REQUIREMENT: 28 Amps
VOLTAGE, FREQUENCY: 230 Volt 60HZ
FEED MOTOR: 1/2HP
FEED SYSTEM: Segmented Infeed / Solid Outfeed
ELEVATION SYSTEM: (2) Jack Screws, Manual Adjustment
CUTTERHEAD: 5900 RPM, 3-1/4’’ x 25’’

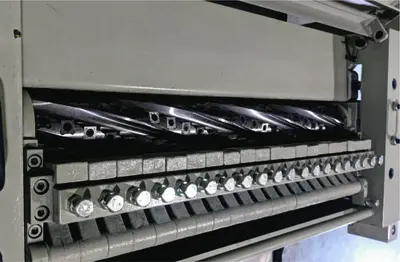

TOOLING: 15x15x2.5mm insert knives, 6 rows (144 total)
DUST PORT SIZE OUTLET: (2) 5’’ ports
TABLE SIZE: 26’’ x 27-3/4’’
Min. Thickness: 3/16”
Max Thickness: 8’’
Min. Length: 8’’
Max. Width: 24-7/8’’
MACHINE DIMENSIONS: 39’’ x 29’’ x 53’’
NET WEIGHT: 1070 Lbs
GROSS WEIGHT: 1200 Lbs
