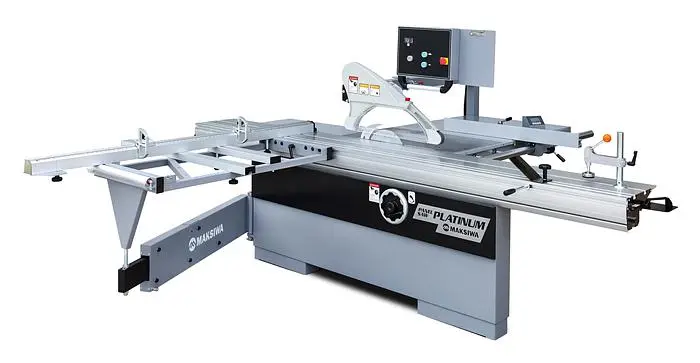

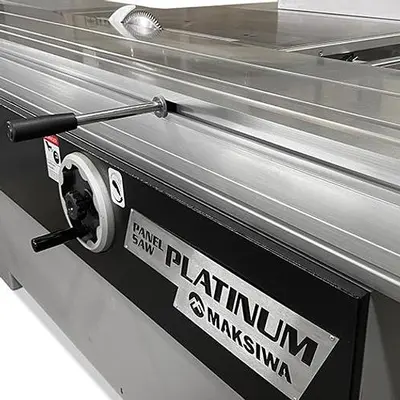

Maksiwa Sliding Panel Saw Platinum - BMP.3200.IR - 10 foot - 7.5HP / 3 Phase

Main Motor: 7.5 HP/ 4000 RPM 5.5 Kw
Main Blade Max cutting Height at 90°: 3 1/2" | 90 mm
Main Blade Cutting Height at 45°: 2 7/16" | 63mm
Scoring Motor: 3/4 HP / 8000 RPM .74Kw
Crosscut Fence Capacity Closed/Open: 78" / 120" | 1981mm / 3048 mm
Machine Working Dimensions (LxWxH): 132" x 137" x 75" | 3352 x 3479 x 1905 mm
Cast Iron Table Dimension (LxWxH): 35" x 21" x 34" | 896 X 548 X 864 mm

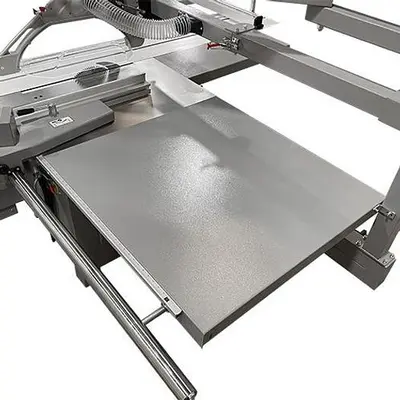

Sliding Table Dimension (LxW): 126" x 14 " | 3200 x 358 mm
Dust Collection Port (2): 4" | 100mm
Minimum Dust Collection Requirements: 1000 CFM | 28m/min
Electrical Specs: 3 Phase 220V 30 Amps 60 Hz
Main Body Crate Dimensions (LxWxH): 83" x 45" x 45" | 2108x 1143 x 1143 mm
Main Body Crate Weight Net/Gross: 1470 LBS | 667 KGS
Sliding Table Crate Dimensions (LxWxH): 133" x 18" x 15" | 3378 x 457 x 381 mm
Sliding Table Crate Weight Net/Gross: 274 LBS | 124 KGS
Scoring Motor Blade: 4 3/4" | 12mm
Scoring Blade Arbor: 3/4" | 20mm
Scoring Blade Type: Conical
Max Ripping Capacity: 51" | 1295mm
Crosscut Capacity: 126" | 3200 mm
Max Blade Diameter: 14" | 355mm
Main Blade Arbor: 1 3/16" | 30mm
