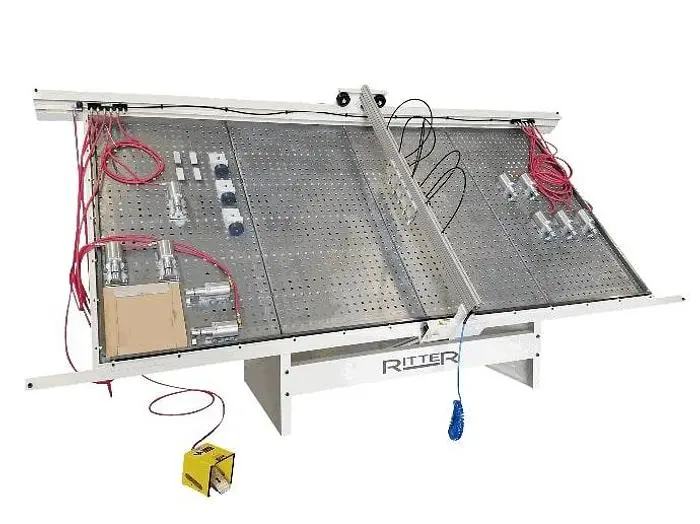

NEW RITTER R250EA

Frame assembly system for doweled, mortise and tenon, or screwed together frames and cabinet doors. Screwed together face frame construction provides for the most efficient and economical methods for joining frames. Flush and tight joint construction is provided for all types of wood. Elimination of dowel boring and insertion, clamping time and joint misalignment provide up 50% time reduction in frame production. The ability to disassemble and reposition a joint creates less loss of material in case of errors in the joint location. No glue required. 6'x12' Assembly Table 45° Vertical Easel Hold Down Beam with (5) Adjustable Hold Down Cylinders 1-5/16" Clearance Under Vertical Cylinders Squaring Bars on Left, Right and Bottom Sides (10) Universal Clamping Cylinders & Manifold 706.8 LBS of force at 100 PSI (4) Material Hold Down Dogs (3) Adjustable Material Positioning Stops 2" Cylinder Position Grid Pattern 3" Bore Clamp Cylinder Housing Heavy Duty Steel Frame Perforated Steel Table Open Back Design 6 port Manifold with 1/4" NPT Regulator/Gage Adjustable pressure from 20 to 130 PSI Foot Treadle Heavy Duty Steel Frame (1) Coilhose for Pneumatic Screw Gun Screw Gun Not Included R275A - Face Frame Assembly Clamp Arm U300E05 - Additional AC-20 Universal Clamp Cylinder U37515 - Additional Manifold Assembly U300E16 - Additional Foot Treadle Assembly

Usable Table Area: 72" x 138"
Work Height: 25"
Footprint: 165" L x 66" D x 86" H
Electrical: N/A
Air: 100 PSI
Shipping Weight: 1770 LBS
Shipping Dimensions (L x W x H): 84" X 170" X 30" H
