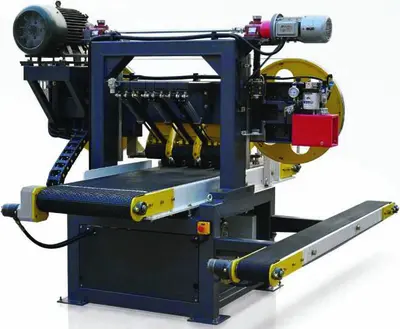

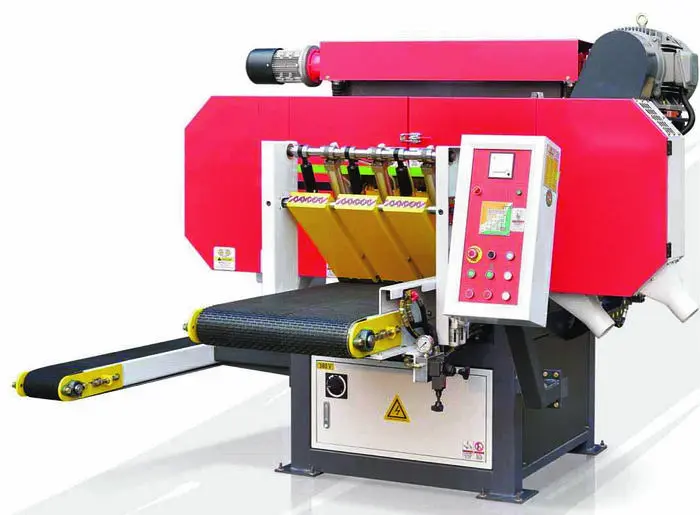

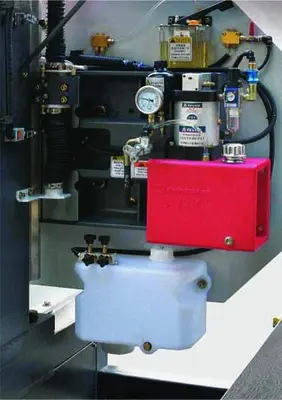

NEW TIMBERTECH T-650Z

Timbertech Series Resaws, the ultimate solution for precision resawing! With three different widths to choose from, these resaws are designed to meet all your wood processing needs. Say goodbye to manual adjustments with our digital controller, allowing for convenient and accurate thickness settings.

MAIN MOTOR HP: 30HP
VOLTAGE, FREQUENCY: 230V
PHASE: 3 Phase
AMP REQUIREMENT: 80

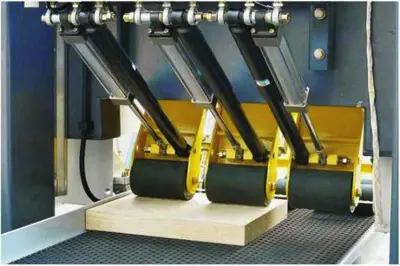

FEED SYSTEM: Conveyor Belt

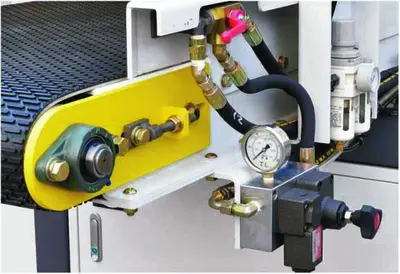

DRIVE SYSTEM: Hydraulic

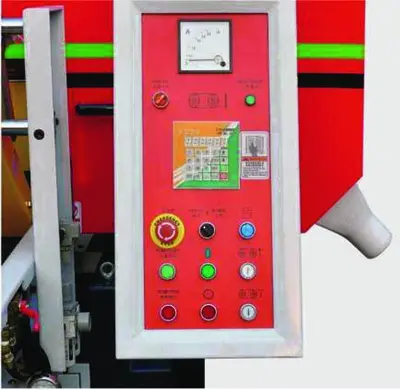

ELEVATION STYLE: Programmable Controller
CUTTING ENVELOPE: 25-1/2'' x 11-7/8''
MIN. WORKING THICKNESS: .197''
BLADE SIZE: 1-3/8'' to 2'' x 205''
CLEANING SYSTEM: Wheel Scrapers
TRACKING STYLE: Manual Adjustment
TENSION STYLE: Auto Hydraulic

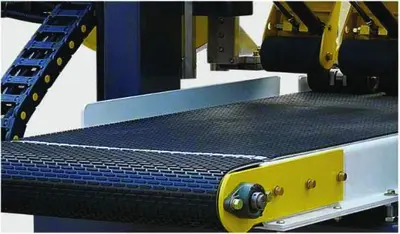

CONVEYOR: 24-1/2'' x 217''

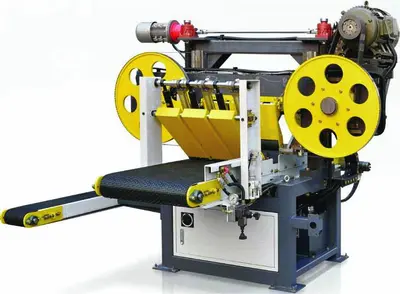

BLADE WHEEL DIMENSIONS: 1-3/4'' x 28''
WHEEL CONSTRUCTION: Cast
MACHINE DIMENSIONS: 109'' x 97'' x 76''
GROSS WEIGHT: 5700 Lbs.
