The Northtech ADS100A is an automatic feed through defect saw. The scanning fluorescent marking technology provides rapid speed cutting with multiple cut modes. The overhead feed system pushes product seamlessly through the up cut saw. Programmable cut lists and optional end trim ensures exact product outputs. The NT-CFS100A comes standard with small part blow off and discharge chute for faster production outputs.
MAIN MOTOR HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 19/38 Amps
FEED HP: 3 HP
FEED SYSTEM: Inverter Controlled Servo Motor
DRIVE SYSTEM: Servo Clutch Timing Belt 5 Drive Wheels
FEED SPEED RANGE: 36-360 FPM
VARIABLE FEED SPEED: Inverter Controller
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Jack Screw
TOTAL MACHINE HP: 13 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt 24 Volt
ASSISTED START: Wye Delta
PROGRAMABLE: Cut List with Defecting
TOUCH SCREEN: 8'' Touch Screen
ADJUSTABLE OPERATOR PANEL: Cart
PASS-LINE: 35''
CUTTING ENVELOPE: 4'' x 11-15/16
MAX. WORKING LENGTH: 7.9''
MIN. WORKING WIDTH: 1/2''
MAX. WORKING WIDTH: 1/2'' x 15-3/4''
MIN. WORKING THICKNESS: 3/16''
MAX. WORKING THICKNESS: 4'' x 11-15/16''
ARBOR RPM: 3400 RPM
BLADE SIZE: 18''
NO. OF TEETH ON BLADE: 120 Tooth
TOOTH SPACING: 0.45''
BLADE KERF: 0.17''
CLEANING SYSTEM: Jet Blow Off on Sensors
DUST PORT SIZE OUTLET: (2) 4'' ports
ARBOR DIAMETER: 30 MM
CYCLES/MINUTE: 130 Cycles Per Minute 3/16'' Cut
POWERED ROLLERS: (5) Bottom Powered Rollers
IDLE ROLLERS: (5) Top Idle Rollers

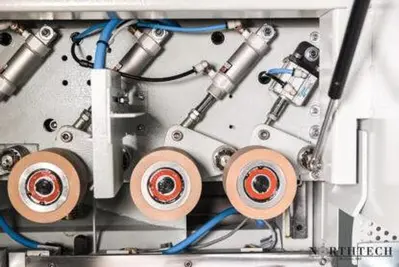

HOLD DOWN STYLE: (5) Top Pneumatic Rollers
FLR INCLUDED: Filter Lubricator Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
WASTE DISCHARGE: 10'' x 17-3/4'' Discharge Chute
REAR E STOP: E-Stop End of Both Conveyors
SAFETY FEATURE: Full Enclosure with Safety Switch
GUARDING: Full Enclosure
OPERATION STYLE: Manual /Automatic
FENCE TYPE: Fixed
FENCE DIMENSIONS: 1-3/4'' x 34''
ADJUSTABLE STROKE: Using Magnetic Sensor
STROKE LENGTH: Adjustable
BRAKE SYSTEM: Servo Brake on Feed
FRAME CONSTRUCTION: Fabricated Steel Construction
WORKTABLE DIMENSIONS: 17-3/8'' x 35-5/8''
TABLE CONSTRUCTION MATERIAL: Steel Plate
INFEED TABLE LENGTH: 48-1/2''
OUTFEED TABLE LENGTH: 39-1/2''
DECIBEL RATING: 75 dB
NET WEIGHT: 2104 Lbs.
GROSS WEIGHT: 2330 Lbs.
MACHINE DIMENSIONS: 124'' x 47'' x 56''
PACKAGING DIMENSIONS: 90'' x 51'' x 62''
