NEW NORTHTECH NT-RRS80B2

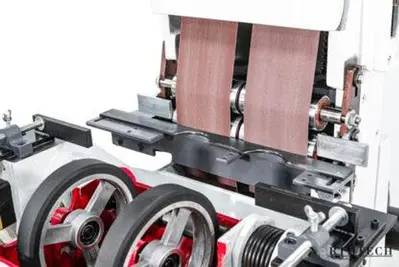

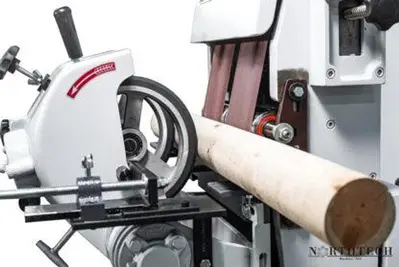

The NT-RRS80B2 is a two head heavy duty sander specifically designed for round rods. It is a heavy-duty industrial grade sander that rolls the part against the sanding belts as it is fed though the machine. Variable feed speed with varying sanding grits allows for a smooth sanded finish. This machine can be used for wood and other solid materials with a diameter range of 3/8″ to over 3″ diameter. This style machine is also offered in a single belt version for lighter jobs and a smaller footprint.

MACHINE HP: 6 HP
MAIN MOTOR HP: 5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 7.9/15.8 Amps
FEED HP: Share 5 Hp Motor

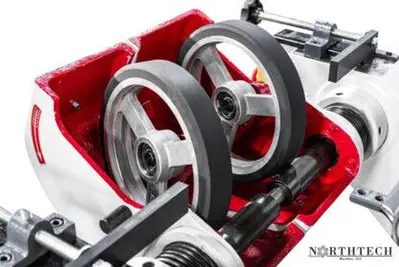

FEED SYSTEM: (2) Canted Rollers
FEED SPEED RANGE: 20-50 FPM
VARIABLE FEED SPEED: Handle Adjustment
TOTAL MACHINE HP: 6 HP
APPROVED ELECTRICAL PARTS: CE Approve Parts
DUAL VOLTAGE MOTORS: 230/460 Volt 60Hz
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 31-15/16;;
MIN. WORKING LENGTH: 7''
MIN. WORKING WIDTH: 1/2''
MAX. WORKING WIDTH: 3.125''
MIN. WORKING THICKNESS: 1/2''
MAX. WORKING THICKNESS: 3.125''
NO. OF HEADS: (2)
SANDPAPER SIZE: 5'' x 73''
ROLLER TYPE: (2) 2-1/4'' x 6'' Rollers
1st BELT SPEED: 3720 RPM
2nd BELT SPEED: 3720 RPM
TRACKING STYLE: Manual Knob Adjustment
TENSION STYLE: Manual Handle Adjustment
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Point
DUST PORT SIZE OUTLET: (1) 5''
IDLE ROLLERS: (4)
HOLD DOWN STYLE: Feed Wheels
GUARDING: Guard on Feed Wheels
OPERATION STYLE: Manual
FENCE TYPE: Adjustable
FRAME CONSTRUCTION: Cast Construction
TABLE CONSTRUCTION MATERIAL: Steel
DECIBEL RATING: 83 dB
NET WEIGHT: 858 Lbs.
GROSS WEIGHT: 990 Lbs.
MACHINE DIMENSIONS: 38" x 26" x 53"
PACKAGING DIMENSIONS: 43'' x 25'' x 62''
