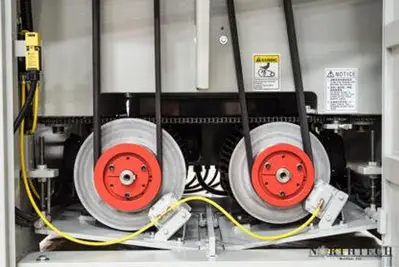

NEW NORTHTECH NT-10-600RC

While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, the 10 series machines are designed for industrial production use. The NT-10-610RC is a two head wide belt sander with 24″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The 10″ contact drum and combination head configuration provides excellent stock removal with a smooth finish. Available in a bottom series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.

MACHINE HP: 38 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 92/46 Amps
CONFIGURATION: Roller / Combination
1st HEAD: 20 HP Rubber Fluted Roller
2nd HEAD: 15 Hp Combination Head
BRUSH MOTOR HP: 1/2 Hp.
FEED HP: 2 HP
FEED SYSTEM: 24'' Rubber Feed Mat
DRIVE SYSTEM: 2 Hp Motor Gear Box
FEED SPEED RANGE: 20-80 FPM
VARIABLE FEED SPEED: Adjustable Pulley Knob
ELEVATION HP: 1/2 HP
ELEVATION STYLE: Digital Readout
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 38 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PROGRAMABLE: Elevation
TOUCH SCREEN: 7'' Touch Screen
MIN. WORKING LENGTH: 19''
MAX. WORKING WIDTH: 24''
MIN. WORKING THICKNESS: .155''
MAX. WORKING THICKNESS: 5.8''
SANDPAPER SIZE: 25'' x 85''
PLATEN SPECIFICATIONS: 1-3/4'' x 25''
1st BELT SPEED: 4800 FPM
2nd BELT SPEED: 3000 FPM
OSCILLATION STYLE: Photo Eye
OSCILLATION RATE: Adjustable
OSCILLATION TRAVEL: 3/8''
CLEANING SYSTEM: Jet Blow Off Photo Eye (2)Jet Blow Off on Sandpaper
TRACKING STYLE: Photo Eye Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
VERTICAL TRAVEL: 6''
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (8) 5'' Ports
CONVEYOR: 24'' Feed Mat
IDLE ROLLERS: (4) Top Idle Rollers
PRESSURE SHOES: (2) Top Pressure Shoes
HOLD DOWN STYLE: Idle Rollers Pressure Shoe
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: (2) 3/8'' Line @ 90 PSI
EMERGENCY STOP: (1) Font
REAR E STOP: (1) Rear
GUARDING: Full Enclosure
BRAKE SYSTEM: Dual Pneumatic Caliper
FRAME CONSTRUCTION: 1/4'' Steel
TABLE CONSTRUCTION MATERIAL: Steel
NET WEIGHT: 6500 Lbs.
GROSS WEIGHT: 6850 Lbs.
MACHINE DIMENSIONS: 89'' x 55'' x 84''
PACKAGING DIMENSIONS: 51'' x 91'' x 78''
