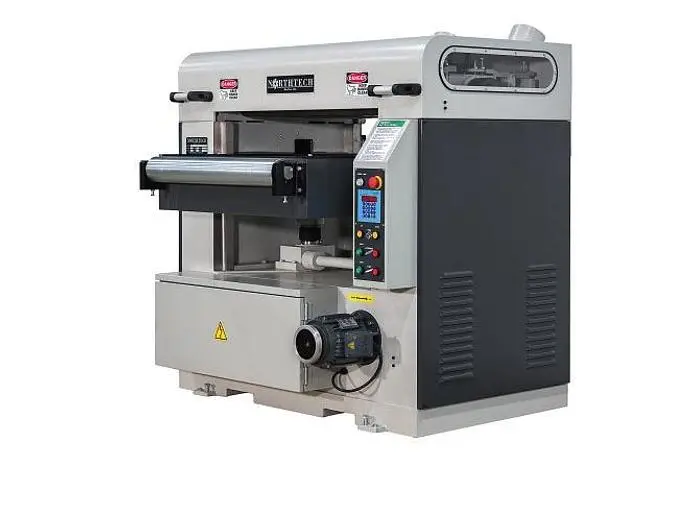

The NT-850HCVS is our 30HP Single Surface Planer with a 33-1/4″ working width. This planer has a heavy-duty cast iron base, oversized column bed supports, and spring-loaded chip breakers. The 850 comes standard with powered digital thickness control, independent feed start/stop, independent cutterhead start/stop, and inverter speed control. It also comes standard with limit switches to restrict head access while on, front and rear emergency stop buttons, and anti-kick-back fingers for added safety. The corrugated sectional infeed rollers with smooth non marking outfeed rollers coupled with integrated bed rollers provide smooth part feeding during heavy stock removal operations. Unlike many competitive models of single surface planers, all Northtech feed rollers are synchronized to turn at the same speed.
TOP HEAD HP: 30 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 30/60 Amps
FEED HP: 2 HP
FEED SYSTEM: (4) Top Powered Rollers (4) Bottom Powered Rollers
FEED SPEED RANGE: 10-40 FPM
VARIABLE FEED SPEED: Manual Clutch Adjustment
ELEVATION HP: 2 HP
ELEVATION STYLE: PHE 727M Digital Controller
ELEVATION SYSTEM: (2) Post Jack Screw
TOTAL MACHINE HP: 34 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PROGRAMABLE: Elevation
PASS-LINE: 38-1/2'' Down Position 45-1/4'' Up Position
MIN. WORKING LENGTH: 14''
MAX. WORKING WIDTH: 33-1/4''
MIN. WORKING THICKNESS: .380''
MAX. WORKING THICKNESS: 7.315''
CUTTER HEAD RPM: 3600 RPM
HEAD TYPE: Spiral Helical Cutter Head
CUTTER HEAD DIMENSIONS: 5-1/2'' x 33-1/2''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 8 Rows 32 Inserts Per Row
NO. OF INSERTS: 256 Inserts
DUST PORT SIZE OUTLET: (2) 6'' Ports
DIGITAL DISPLAY: Elevation Controller
POWERED ROLLERS: (4) Top Powered Rollers (4) Bottom Powered Rollers
HOLD DOWN STYLE: (17) Chip Breakers (1) Pressure Plate
REAR E STOP: Push Button
GUARDING: Full Enclosure
DECIBEL RATING: 70 dB
NET WEIGHT: 4950 Lbs.
GROSS WEIGHT: 5388 Lbs.
MACHINE DIMENSIONS: 547'' x 64-1/2'' x61-1/2''
PACKAGING DIMENSIONS: 63'' x 61'' x 67''
