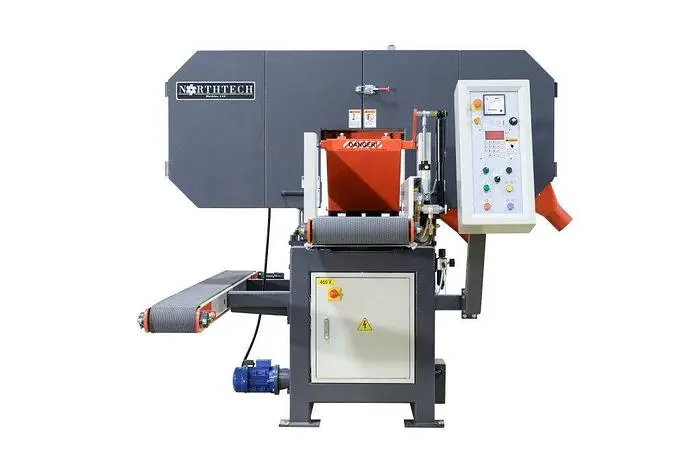

NEW NORTHTECH NT-HBR16PB

The Northtech HBR16PB is our 16″ horizontal resaw. This machine has a 16″x10″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor and a heavy-duty steel frame for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.

MAIN MOTOR HP: 30 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 80 / 40 Amps
FEED HP: 3 Hp Hydraulic Pump
FEED SYSTEM: Hydraulic Motor Feed Mat
DRIVE SYSTEM: Hydraulic Pump 3 HP
FEED SPEED RANGE: 0-34 FPM
VARIABLE FEED SPEED: Hydraulic Metering Valve
ELEVATION HP: 3/4 HP
ELEVATION STYLE: 2 Post Jack Screw
ELEVATION SYSTEM: Motor Gearbox Jack Screw
TOTAL MACHINE HP: 33-3/4 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
ASSISTED START: Wye Delta
PROGRAMABLE: Cut Height
PASS-LINE: 40-7/8''
CUTTING ENVELOPE: 11-3/4'' Tall x 16'' Wide
MIN. WORKING LENGTH: 14''
MAX. WORKING WIDTH: 16''
MIN. WORKING THICKNESS: 3/16''
MAX. WORKING THICKNESS: 11-3/4''
BLADE SIZE: 2'' x 180''
NO. OF TEETH ON BLADE: 240 Tooth
TOOTH SPACING: 3/4''
BLADE KERF: .565''
CLEANING SYSTEM: Band Wheel Scrapers
TENSION STYLE: Air Over Hydraulic Tensioning
VERTICAL TRAVEL: 9-5/8'' Vertical Travel on Blade
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 4''
ARBOR DIAMETER: 2-1/2''
DIGITAL DISPLAY: Elevation
CONVEYOR: 15-1/8'' Feed Conveyor 7-1/4'' Return Conveyor
IDLE ROLLERS: (2) Idle Hold Down Rollers
HOLD DOWN STYLE: Pneumatic Hold Down Rollers
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
SAFETY FEATURE: Enclosure
OPERATION STYLE: Manual
FENCE TYPE: Fixed
FENCE DIMENSIONS: 6-5/8'' x 77-1/4''
BLADE GUIDE: Sparkless Steel
BLADE WHEEL DIMENSIONS: 2'' x 28''
WHEEL CONSTRUCTION: Machined Cast
FRAME CONSTRUCTION: Fabricated Steel
TABLE CONSTRUCTION MATERIAL: Fabricated Steel
DECIBEL RATING: 78 dB
NET WEIGHT: 3424 Lbs.
GROSS WEIGHT: 3702 Lbs.
MACHINE DIMENSIONS: 107'' x 82'' x 72
PACKAGING DIMENSIONS: 113'' x 89'' x 81''
