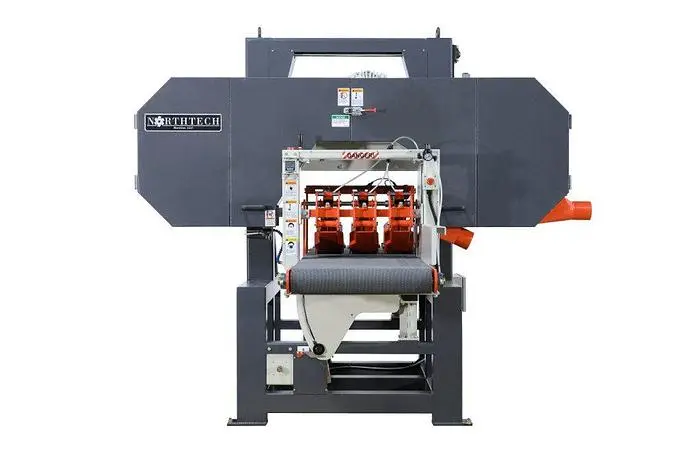

NEW NORTHTECH NT-HBR24PBXT

The Northtech HBR24PBXT is our 24″ horizontal resaw. This machine has a 24″x8″ cut capacity, digital thickness control, 2×28″ band wheels, powered return conveyor, a heavy-duty steel frame and tilt for multiple shift operation for a functional simplicity that makes it easy to operate. The variable speed feed mat has pneumatic infeed and pneumatic outfeed hold downs to provide a wide variety of capability and reliability.

MAIN MOTOR HP: 30 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 78 / 39 Amps
FEED HP: 2 HP
FEED SYSTEM: 23'' Feed Mat
DRIVE SYSTEM: 2 HP Motor Gearbox Feed Mat
FEED SPEED RANGE: 0-105 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1/4 HP
ELEVATION STYLE: CH525 Digital Controller
ELEVATION SYSTEM: 2 Post Jack Screw
TOTAL MACHINE HP: 32-1/4 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
ASSISTED START: Wye Delta
PASS-LINE: 33-7/8''
CUTTING ENVELOPE: 8'' x 23-3/4''
MIN. WORKING LENGTH: 23''
MIN. WORKING WIDTH: 1-3/4''
MAX. WORKING WIDTH: 23-3/4''
MIN. WORKING THICKNESS: 3/16''
MAX. WORKING THICKNESS: 8''
ABLE TO CUT ANGLE: Yes
BLADE SIZE: 2'' x 201''
NO. OF TEETH ON BLADE: 268 Teeth
TOOTH SPACING: 3/4''
BLADE KERF: 1.45 mm
BLADE SPEED: 6375 FPM
TENSION STYLE: Air Over Hydraulic Tensioning
VERTICAL TRAVEL: 9-3/4'' on Blade
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 4'' Ports
ARBOR DIAMETER: 2-9/16'' (65 mm)
DIGITAL DISPLAY: Elevation / Feed Speed
CONVEYOR: 23'' Feed Mat
HOLD DOWN STYLE: (6) Pneumatic Hold Downs
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' @ 90 PSI
SAFETY FEATURE: Door Switch
GUARDING: Full Enclosure
OPERATION STYLE: Manual
FENCE TYPE: Fixed
FENCE DIMENSIONS: 6-1/2'' x 79''
TILT-ABLE: 0 - 30 Degrees
BLADE GUIDE: Steel
WHEEL DIMENSIONS: 1-3/4'' x 28''
WHEEL CONSTRUCTION: Machined Cast
FRAME CONSTRUCTION: Fabricated steel
TABLE CONSTRUCTION MATERIAL: Fabricated Steel
MEASURING METHOD: End Coder
DECIBEL RATING: 73 dB
NET WEIGHT: 3602 Lbs.
GROSS WEIGHT: 3764 Lbs.
MACHINE DIMENSIONS: 104'' x 90'' x 93''
PACKAGING DIMENSIONS: 118'' x 90'' x 85''
