MACHINE HP: 7.5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 22 / 11 Amps
SPINDLE LENGTH: 6''
SPINDLE DIAMETER: 1-1/4''

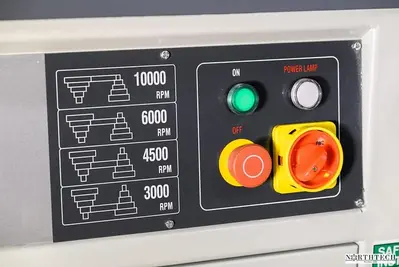

SPINDLE RPM: 3000, 4500, 6000, 10000 RPM
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Quill Housing / Jack Screw
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 33-1/2''
HORIZONTAL TRAVEL: 3-3/4'' Fence Travel
VERTICAL TRAVEL: 5-1/4'' Spindle Travel
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (1) 4''

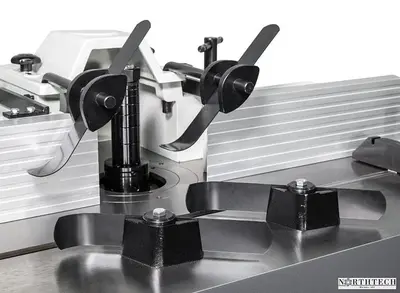

FENCE TYPE: Adjustable
FENCE DIMENSIONS: (2) 5'' x 17''
MICRO FENCE: Knob Adjustment
TILT-ABLE: -5 / 45 Degrees
BRAKE SYSTEM: Foot Pedal
FRAME CONSTRUCTION: Fabricated Steel
WORKTABLE DIMENSIONS: 41'' x 31-1/4''
TABLE CONSTRUCTION MATERIAL: Machined Cast
DECIBEL RATING: 68 dB
NET WEIGHT: 965 Lbs.
GROSS WEIGHT: 1088 Lbs.
MACHINE DIMENSIONS: 43'' x 41'' x 43''
PACKAGING DIMENSIONS: 46' x 44'' x 48
