The NT TB20 is our 20HP direct drive transfer blower. The powerful direct drive design allows for a smaller footprint and rigid power delivery. The steel fabricated housing and frame provide long life while protecting the fan and motor. Northtech Transfer Blowers with controls and round pipe connection fitting make start up quick and easy.
MACHINE HP: 20 HP
DIRECT DRIVE (MOTOR): Yes
APPROVED ELECTRICAL PARTS: 230/460 Volt 60HZ
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
ASSISTED START: Wye Delta
ADJUSTABLE OPERATOR PANEL: Operator Panel on 65'' Cord
FREE AIR CFM: 8375 CFM

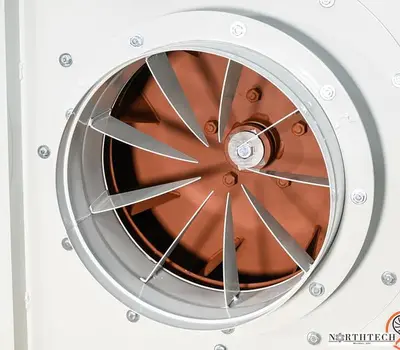

IMPELLER: 6'' x 26'' 8 Fin Steel Impeller
TRANSFER BLOWER INLET: 16''
TRANSFER BLOWER OUTLET: 18''
FRAME CONSTRUCTION: Fabricated Steel Construction
DECIBEL RATING: 96 dB
NET WEIGHT: 692 Lbs.
GROSS WEIGHT: 796 Lbs.
MACHINE DIMENSIONS: 55'' x 36'' x 58''
PACKAGING DIMENSIONS: 59'' x 40'' x 50''
