NEW NORTHTECH NT-800RSP

The Northtech 800RSP vertical resaw is our largest stocked vertical resaw. The 32″ band wheels, tilting work table, and 25 HP motor make for an extremely versatile machine. The NT-800RSP is available with an optional feeder that mounts to the cast iron table for even more production capability.

MAIN MOTOR HP: 25 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 64.4 / 32.2 Amps
FEED HP: 1 HP
FEED SYSTEM: Retractable Knurled Wheel
DRIVE SYSTEM: Inverter Controlled
FEED SPEED RANGE: 0-56 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Yes
TOTAL MACHINE HP: 26 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
ASSISTED START: Wye Delta
PASS-LINE: 39''
MAX. WORKING THICKNESS: 14-3/4''
ABLE TO CUT ANGLE: Yes
ARBOR RPM: 5000 FPM
BLADE SIZE: 2''x 217-1/2''
NO. OF TEETH ON BLADE: 216
TOOTH SPACING: 1''
BLADE KERF: 0.75''
TRACKING STYLE: Manual Adjustment
TENSION STYLE: Handwheel Adjustment
VERTICAL TRAVEL: 4-1/4'' - 14-3/4'' Guard
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 4'' Dust Ports
POWERED ROLLERS: (2)
IDLE ROLLERS: (4)
FLR INCLUDED: Filter Lubricator Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 3-5/8'' x 18''

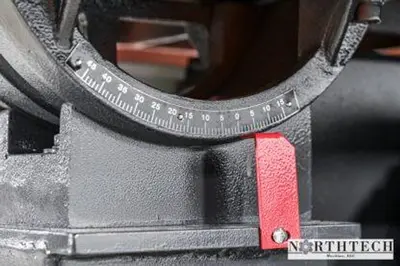

TILT-ABLE: 35 Degrees
BLADE GUIDE: Phenolic
BLADE WHEEL DIMENSIONS: 11 x 35 MM
WHEEL DIMENSIONS: 2'' x 32''
WHEEL CONSTRUCTION: Machined Cast
BRAKE SYSTEM: Foot Pedal
FRAME CONSTRUCTION: Fabricated Steel
WORKTABLE DIMENSIONS: 31-1/2'' x 45-1/4''
TABLE CONSTRUCTION MATERIAL: Machined Cast
DECIBEL RATING: 78 dB
NET WEIGHT: 1078 Lbs.
GROSS WEIGHT: 2022 lbs.
MACHINE DIMENSIONS: 70-1/2'' x 43'' x 97''
