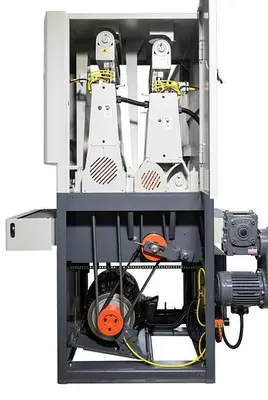

NEW NORTHTECH NT-8-600RC

NT-600RC WIDE BELT SANDER 24″ 25X75″ SANDING BELT

MACHINE HP: 16-1/4 HP
PHASE: 3 Phase
AMP REQUIREMENT: 40 / 20 Amp
CONFIGURATION: Roller Combination
1st HEAD: 8'' Fluted Rubber Roller
2nd HEAD: Fixed 3-1/2'' Combination head with Platten
FEED HP: 1 HP
FEED SYSTEM: 24-3/8'' Rubber Feed Mat
DRIVE SYSTEM: Motor Variable Speed Pulley Gear Box
FEED SPEED RANGE: 17-58 FPM
VARIABLE FEED SPEED: Adjustble
ELEVATION HP: 1/4 HP
ELEVATION STYLE: Elevation Digital Readout
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 16-1/4HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PROGRAMABLE: Elevation
PASS-LINE: 31-15/16'' - 37-9/16
MIN. WORKING LENGTH: 14''
MAX. WORKING WIDTH: 24''
MIN. WORKING THICKNESS: .155''
MAX. WORKING THICKNESS: 5.830''
SANDPAPER SIZE: 25-1/8'' x 75''
PLATEN SPECIFICATIONS: 1-3/4'' x 25-7/8''
1st BELT SPEED: 3666 FPM
2nd BELT SPEED: 2695 FPM
OSCILLATION STYLE: Photo Eye
OSCILLATION RATE: 22 Cycles Per Minute Adjustable
OSCILLATION TRAVEL: 3/8''
CLEANING SYSTEM: Jet Blow Off Photo Eyes
TRACKING STYLE: Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
VERTICAL TRAVEL: 5-5/8 Table Travel
DUST COLLECTION REQUIREMENT: 681 CFM @ Points of Extraction
DUST PORT SIZE OUTLET: (4) 5'' Ports
DIGITAL DISPLAY: Elevation
CONVEYOR: 24-3/8 Rubber Feed Mat
IDLE ROLLERS: (3) Idle Rollers
PRESSURE SHOES: (3) Pressure Shoes
HOLD DOWN STYLE: Idle Rollers / Pressure Shoes
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
EMERGENCY STOP: (2)
REAR E STOP: (1)
GUARDING: Full Enclosure
OPERATION STYLE: Manual
FRAME CONSTRUCTION: Fabricated Steel
TABLE CONSTRUCTION MATERIAL: Fabricated Steel
INFEED TABLE LENGTH: 10''
OUTFEED TABLE LENGTH: 7''
MEASURING METHOD: Encoder
DECIBEL RATING: 82 dB
NET WEIGHT: 2191 Lbs.
GROSS WEIGHT: 2428 lbs.
MACHINE DIMENSIONS: 60'' x 43'' x 76''
PACKAGING DIMENSIONS: 63'' x 45'' x 84''
