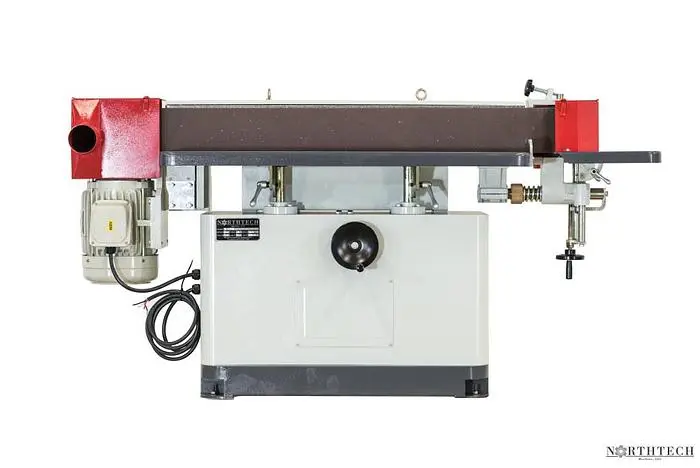

The NT-ES648DE is a compact edge sander that has a 6″x48″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear-driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy-duty cast iron frame provides a vibration-free base and heavy stock removal capability.
MACHINE HP: 7.5 HP
DIRECT DRIVE (MOTOR): Yes
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 20 / 10 Amps
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: (2) Post Jack Screw
TOTAL MACHINE HP: 10 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt
PASS-LINE: 31-1/2'' Down 35-3/4'' Up
MAX. WORKING LENGTH: 48''
MAX. WORKING THICKNESS: 6''
SANDPAPER SIZE: 6'' x 141''
PLATEN SPECIFICATIONS: 6-1/2'' x 48''
DRUM SPECIFICATIONS: Drive 6.5'' x 7'' Idle 6.5'' x 7''
ROLLER TYPE: Drive Aluminum Idle Rubber
1st BELT SPEED: 3300 FPM
OSCILLATION RATE: 30 Cycles/Minute
OSCILLATION TRAVEL: 1/2''
TRACKING STYLE: Manual Knob Adjustment
TENSION STYLE: Manual Knob Adjustment
VERTICAL TRAVEL: Table Adjust 4-1/2''
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 4'' Ports
TILT-ABLE: 45 Degree
FRAME CONSTRUCTION: Fabricated Steel
END TABLE DIMENSIONS: 13-3/4'' x 17-3/4''
WORKTABLE DIMENSIONS: 47-3/4'' x 10-1/2''
TABLE CONSTRUCTION MATERIAL: Chromed Steel
DECIBEL RATING: 62 dB
NET WEIGHT: 858 Lbs.
GROSS WEIGHT: 1054 Lbs.
MACHINE DIMENSIONS: 79'' x 29'' x 42''
PACKAGING DIMENSIONS: 83'' x 34'' x 48''
