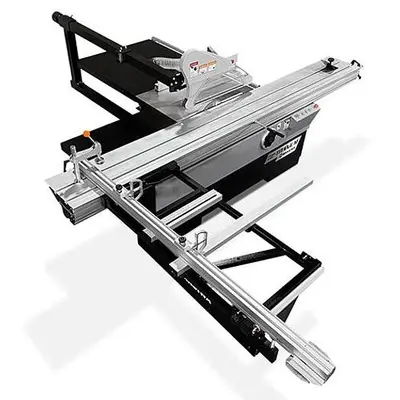

NEW MAKSIWA BMT.3200.IR

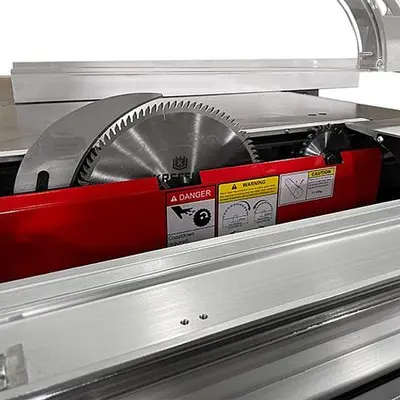

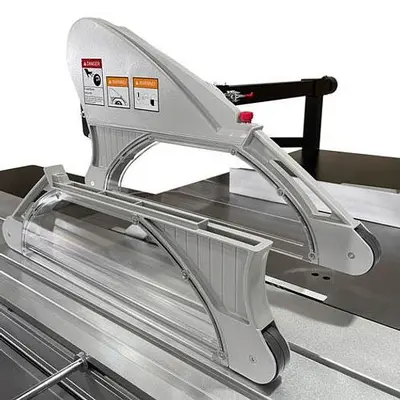

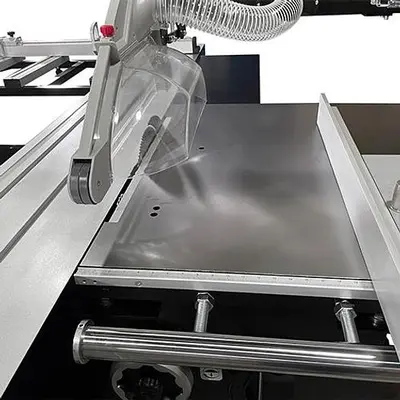

The Maksiwa BMT.3200.IR Titanium Sliding Panel Saw sets the standard for durability and smooth operation in woodworking. Engineered by our expert team, this advanced panel saw is crafted with superior components and materials, ensuring you receive the best in performance and reliability. Featuring an innovative table system, the BMT.3200.IR delivers unmatched smoothness and precision, making it easy to handle even heavy loads with effortless movement. Additionally, it comes standard with a dual overhead saw guard and a 4” dust port, promoting a cleaner workspace while enhancing safety during operation. Elevate your woodworking projects with the precision and power of the BMT.3200.IR.

Main Motor: 5 HP / 4000 RPM 3.7 kw
Max Blade Diameter: 12" 305 MM
Main Blade Arbor: 1 3/16 " 30 MM
Main Blade Max cutting Height at 90°: 3 1/2" 90 MM
Main Blade Cutting Height at 45°: 2 7/16" 63 MM
Scoring Motor: 3/4 HP / 8000 RPM .55 kw
Scoring Motor Blade: 4 3/4" 120 MM
Scoring Blade Arbor: 3/4" 20 MM
Scoring Blade Type: Conical
Max Ripping Capacity: 51" 1300 MM
Crosscut Capacity: 126 " 3200 MM

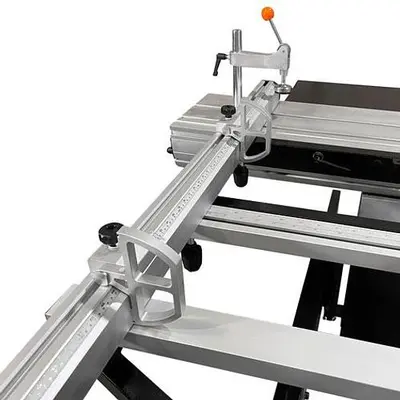

Crosscut Fence Capacity Closed/Open: 78"/120" 1981/ 3048 MM
Machine Working Dimensions (LxWxH): 132" x 137" x 65" 3352 x 3479 x 1651 MM

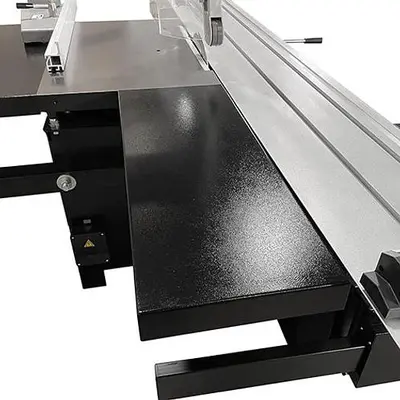

Cast Iron Table Dimension: 35 " x 21 " 896 x 548

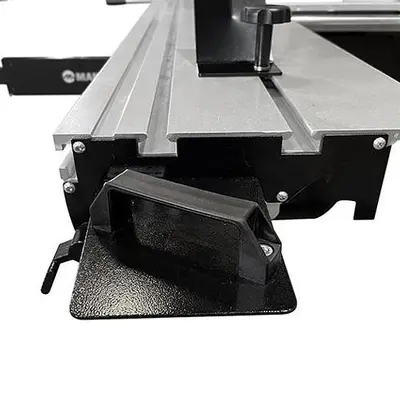

Sliding Table Dimension: 126" x 14" 3200 x 358 MM

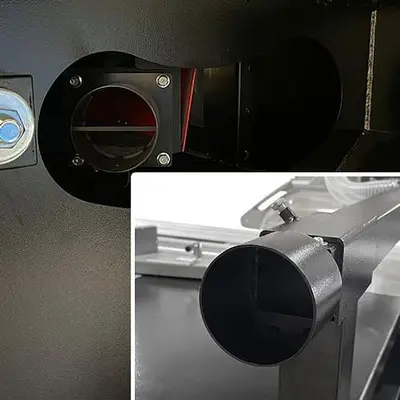

Dust Collection Port (2): 4" 100 MM
Minimum Dust Collection Requirements: 1000 CFM
Electrical Specs: 1 Phase 220V 30 Amps 60 Hz
Main Body Crate Dimensions (LxWxH): 83" x 45" x 45"
Main Body Crate Weight: 1254 Lbs 569 Kgs
Sliding Table Crate Dimensions (LxWxH): 133" x 18" x 15"
Sliding Table Crate Weight: 274 Lbs 124 Kgs
