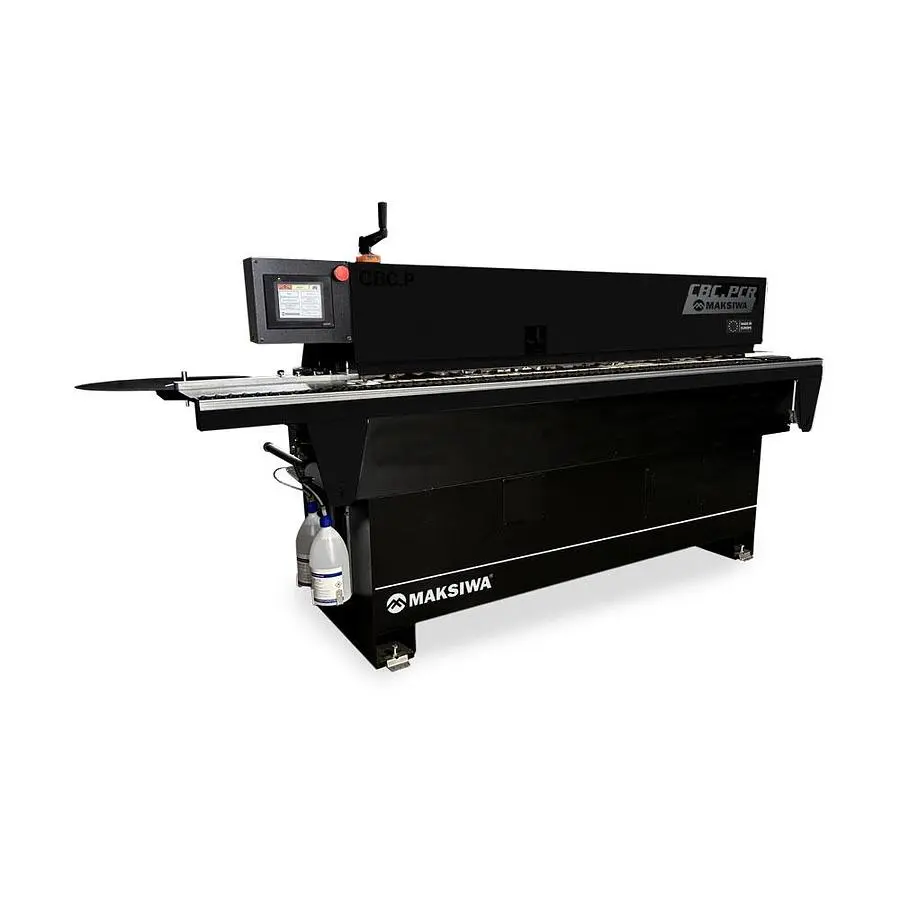

NEW MAKSIWA CBC.PCR

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm. Edge Tape: 0.4-3 mm Panel Thickness: 8-50mm 1 Phase 220V 60Hz Corner Rounding Unit Glue Scraper Unit Buffing Unit End Trimming HF Motor Pre-milling Unit 2 HF Motors with Diamond Cutters XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System) C.A.S.S - Cleaning Agent Spraying System Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated Automatic feeding Speed 18 ft/min Conveyor Chain Feed System for optimum results. HF motors controlled by independent electronic inverters Net Weight 1653 Lbs | 750 kgs Compact Design Melamine/PVC/ABS/PP

Automatic Feeding speed: 18 ft/min
Panel thickness Min/Max: 21/64” - 1 31/32”
Max Pre-milling Height: 1”
Edgebanding thickness: 0.0157" - 0.118"
Glue Pot Capacity: 3.3lbs
Max Edgebanding Height: 2"
Minimum panel width: 3"
Minimum panel length: 7 7/8"
Extendable Panel Support Rail Length: 103"
Extension table Max Width: 54"
Size of Dust Collector Ports: 6''
Minimum Dust Collection Requirements: 1236 CFM
Air Pressure Requirement: 14 SCFM @ 87PSI
Edgebanding coil Support Diameter: 59"
Recommend Glue Temperature Range: 356°F - 410°F
Max. machine dimensions (LxWxH): 119”x 40 16/16”x 48. 7/16”
Net weight: 1411 LBS
Shipping dimensions (LxWxH): 111” x 30” x 57”
Glue Type: Granulated Hot-Melt EVA / PUR
Electrical Information: 1 Phase 220V 30 Amps 60Hz
Sound Rating: 80 dB
