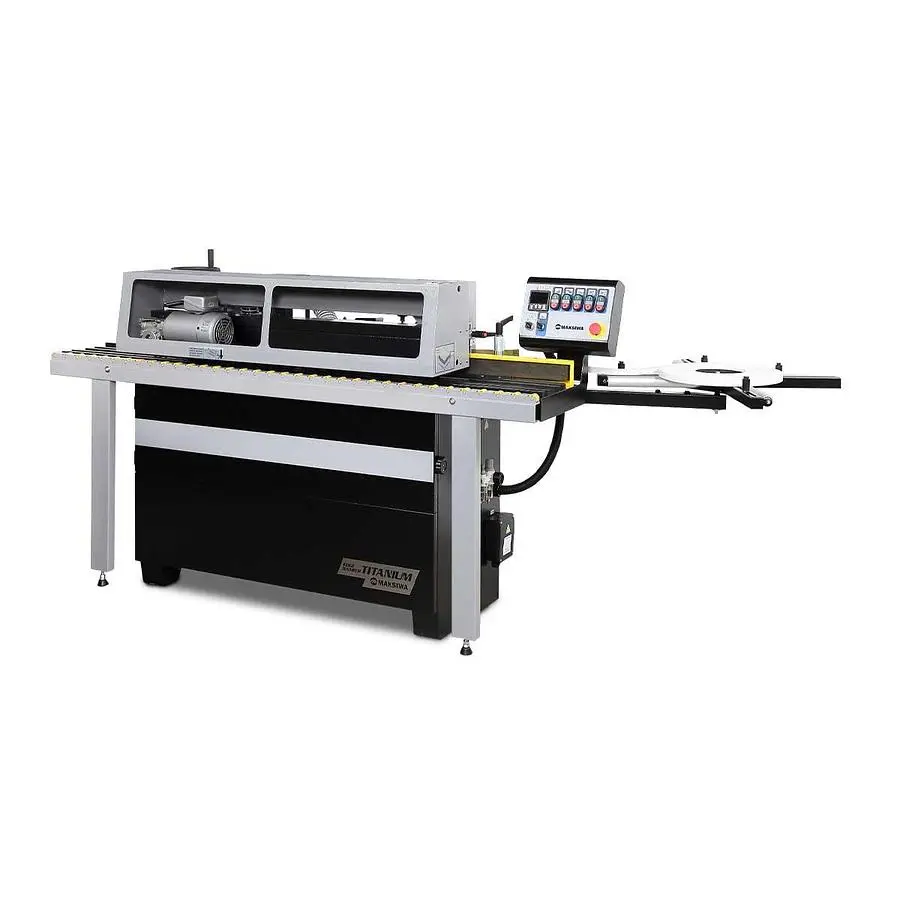

NEW MAKSIWA CBC.T

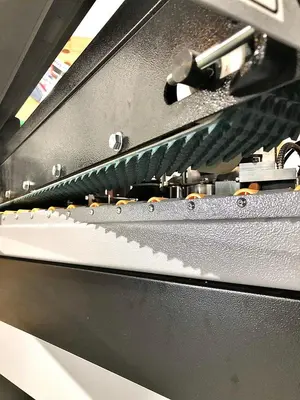

Experience a finished product like never before. A masterpiece of engineering, this edgebander is packed with features to make your job easier. The exceptionally steady and stable CBC.T platform uses a stainless-steel mono-block base. Simply lift the protection hood to access all operating components. A friction-free worktable feeds panels with high-precision as rollers move the panels through effortlessly and smoothly. Panel processing is fully automated and synchronized, while maintaining manual adjustments and mechanical readouts for reference.

Automatic Feeding speed: 16ft/MIN
Panel thickness Min/Max: 31/64" - 1 3/4"
Edgebanding thickness: 0.0157" - 0.118"
Glue Pot Capacity: 2 Lbs
Max Edgebanding Height: 2"
Minimum panel width: 4 3/4"
Minimum panel length: 9 7/16"
Extendable Panel Support Rail Length: 78 21/32"
Extension table Max Width: 12"

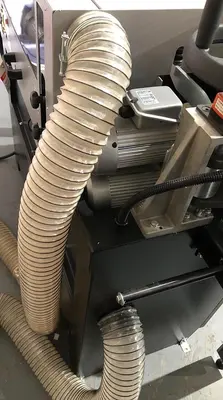

Size of Dust Collector Ports (2): 4"
Minimum Dust Collection Requirements: 700 CFM

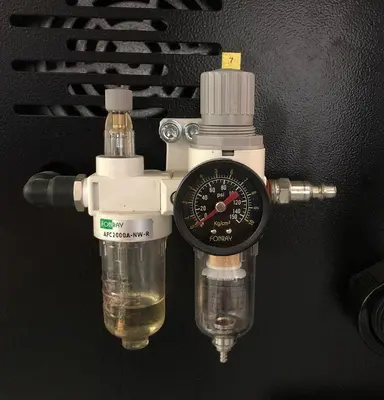

Air Pressure Requirement: 6 SCFM @ 100 PSI
Edgebanding coil Support Diameter: 31 1/2"
Recommend Glue Temperature Range: 356°F - 410°F
Glue Type: Pellet - Granulated Hot-Melt
Max. machine dimensions (LxWxH): 112"x 63"x 51"
Machine weight: 849 LBS
Shipping dimensions (LxWxH): 86" x 36" x 57"
Shipping weight: 1025 Lbs
Sound Rating: 80 dB
