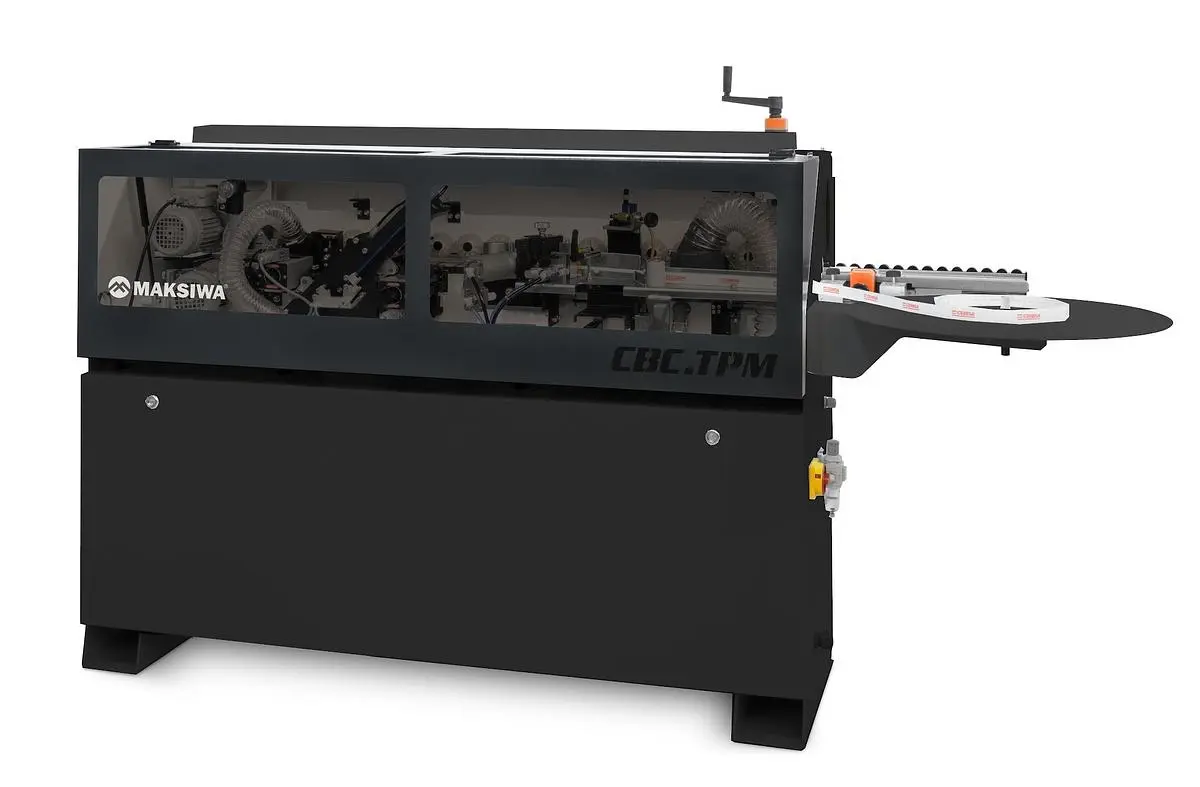

NEW MAKSIWA CBC.TPM

Automatic Feeding speed: 21 ft/min
Panel thickness Min/Max: 13/32” - 1 3/4”
Max Pre-milling Height: 1”
Edgebanding thickness: 0.0157" - 0.07"
Glue Pot Capacity: 1lbs
Max Edgebanding Height: 1"
Minimum panel width: 1 3/4"
Minimum panel length: 4 3/4''
Extendable Panel Support Rail Length: 83 1/2"
Extension table Max Width: 10"
Size of Dust Collector Ports: 6"
Minimum Dust Collection Requirements: 1236 CFM
Air Pressure Requirement: 14 SCFM @ 87PSI
Edgebanding coil Support Diameter: 59"
Recommended Glue Temperature Range: 356°F - 410°F
Max. machine dimensions (LxWxH): 93 1/2”x 40 13/16”x 53”
Net weight: 1191 LBS
Shipping dimensions (LxWxH): 91” x 30” x 57”
Glue Type: Granulated Hot-Melt EVA
Electrical Information: 1 Phase 220V 30 Amps 60Hz
Sound Rating: 80 dB
