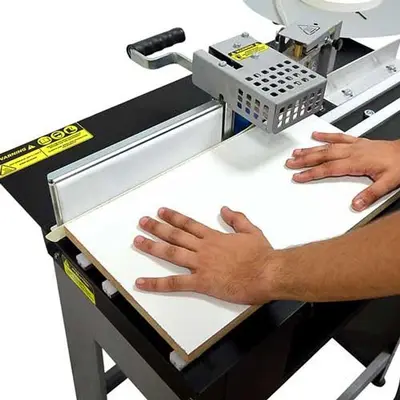

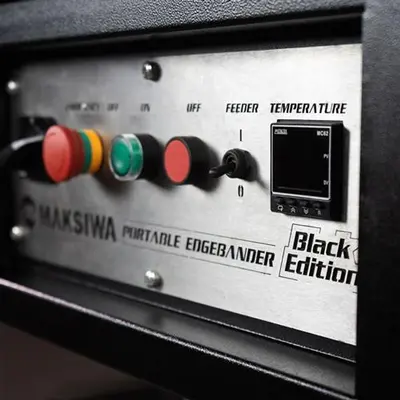

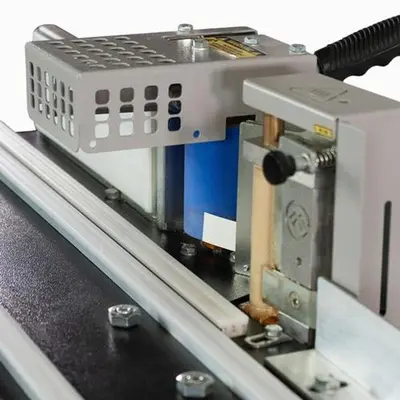

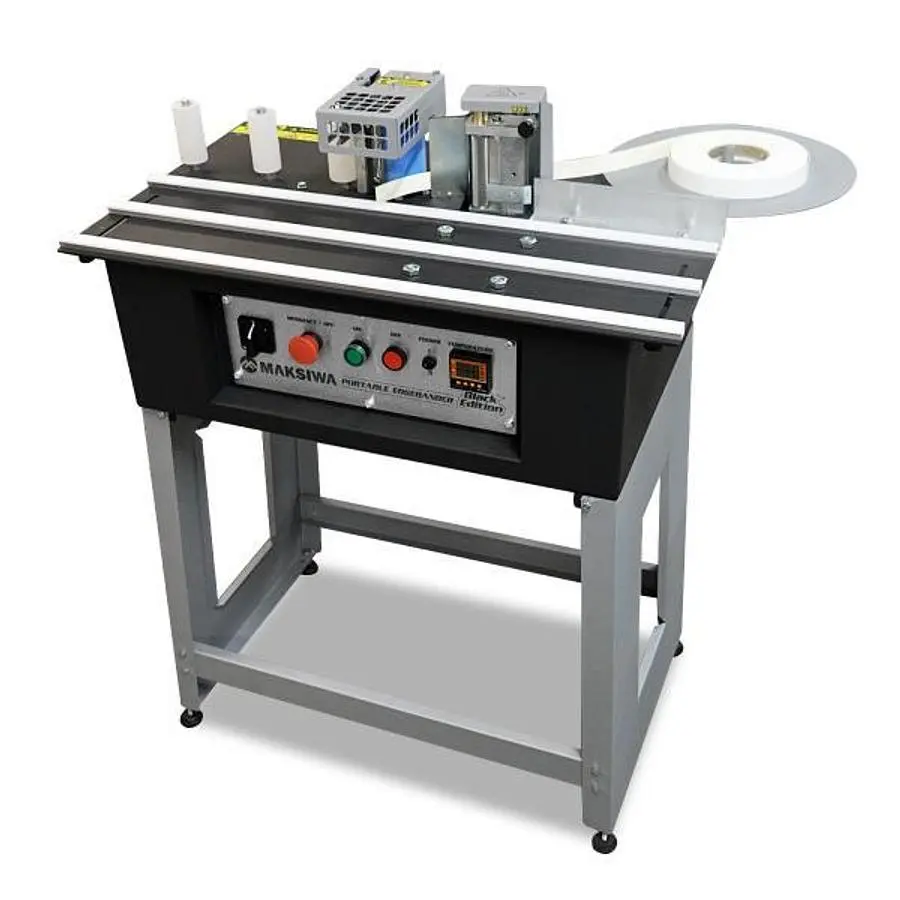

The Portable Edgebander CBC.E is designed for convenience, portability, and efficiency. It has retractable legs for easy transportation. Works with edge banding tape width up to 3” and thickness 0.3mm -2mm. The built-in manual cutter provides a precise cut of the tape. With a digital temperature control panel, you can easily control the glue temperature and the glue pot capacity is 1.5 pounds (700 grams). A spiral bar raises the glue from the glue pot and flows back down, similar to a fondue fountain. It uses low temperature pellet glue, Maksiwa recommends glue that work in the range of 130° up to 180° Celsius. There is also an adjustment for glue flow rate. Safety features include an emergency button, which will instantly shut down all machine controls.
| Weight | 114 Lbs. | 114 Lbs. |
Electrical specs: 1 Phase 110 V 1500 W 60Hz
Max. Machine Dimension: 47" x 31" x 42"
Shipping Dimensions (L x W x H): 32" x 22" x 20"
Motor specs: 24 V 10 Amp
Manual Feeding Speed: 18ft/min
Max edgebanding Height: 3"
Edgebanding Coil Support Diameter: 19 1/2"
Tape Thickness: 0.4 - 2mm
Edgebanding Material: Melamine /PVC/ABS/PP/ VEENER non-fleeced
Glue Pot Capacity: 1.5 lbs
Warranty: 2 years
Recommended Glue Temperature Range: 130° to 180º C
Glue Pot Tape: Granulated Hot-Melt
