NEW MAGGI SYSTEM 35

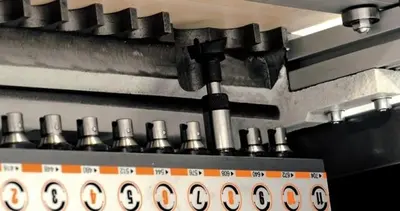

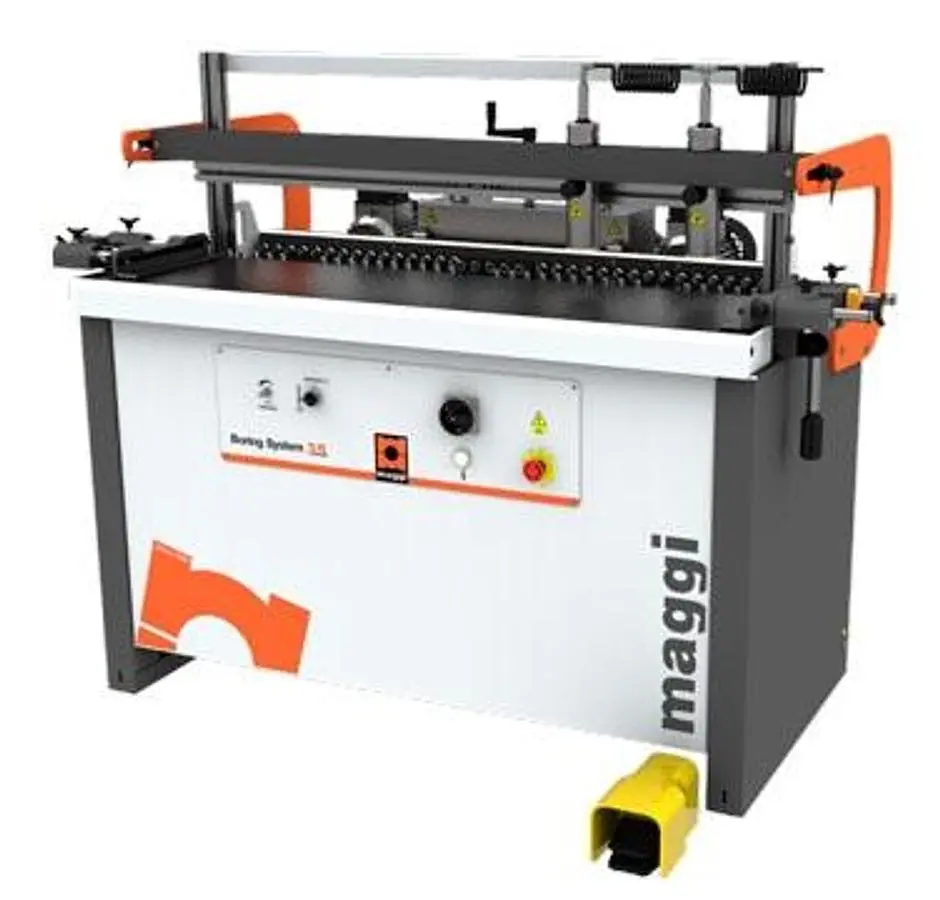

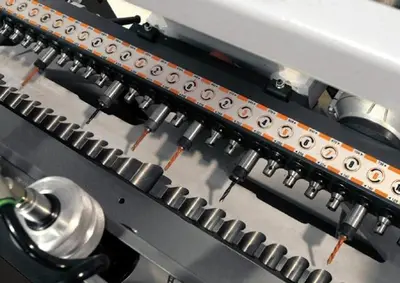

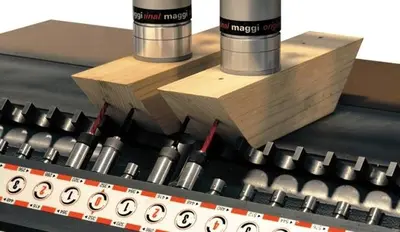

The Maggi System 35 Boring Machine provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle Accurate positioning of the boring unit to the table with digital readout 0 to 3.25" adjustable drilling depth with patented spiral setting device (4) patented quick release material clamps with auto-setting to firmly hold material to table (2) Powerful 2 HP motors 52" x 13" cast iron table Side fences with mechanical digital readout for quick and accurate setting 120" line boring fence with (4) stops Foot actuated pneumatic clamps and drill cycle Uses 17 Left Hand (red/orange) and 18 Right Hand (black) boring bits Includes: Magnetic Starter with overload protection and (35) quick change chucks Dust Outlet: 3" Voltage: 230V 3-Phase Net weight: 881 lbs Dimensions: 65.75" x 38.9" x 50" Tall Crated Dimensions: 57" x 38" x 43" Tall Crated Weight: 895 lbs.
