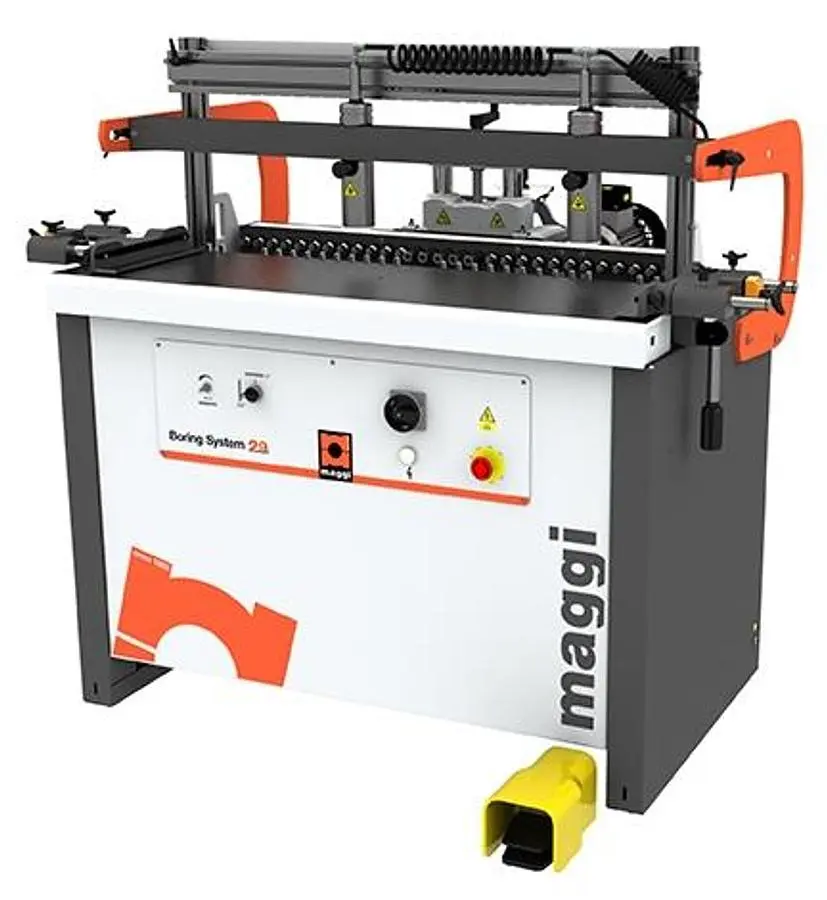

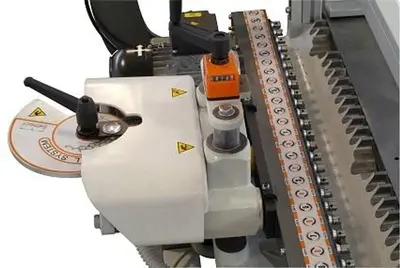

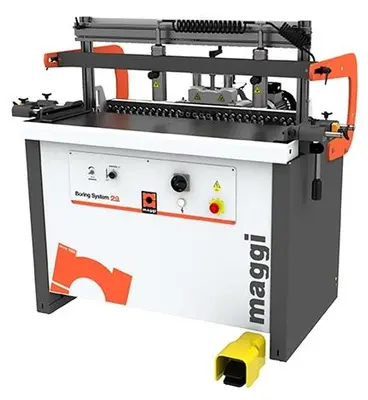

The Maggi System 29 Boring Machine provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout. 0 to 2.5" adjustable drilling depth with patented spiral setting device. (3) patented quick release material clamps with auto-setting to firmly hold material to table. Powerful 2 HP motor. 47" x 13" cast iron table. Side fences with mechanical digital readout for quick and accurate setting. 120" line boring fence with (4) stops. Foot actuated pneumatic clamps and drill cycle. Uses 14 Left Hand (red/orange) and 15 Right Hand (black) boring bits Includes: Magnetic Starter with overload protection and (29) quick change chucks. Dust Outlet: 3" Voltage: 230V 3-Phase Net weight: 705 lbs. Dimensions: 59.3" x 37.8" x 50" Tall. Crated Dimensions: 50" x 38" x 42" Tall. Crated Weight: 759 lbs.
