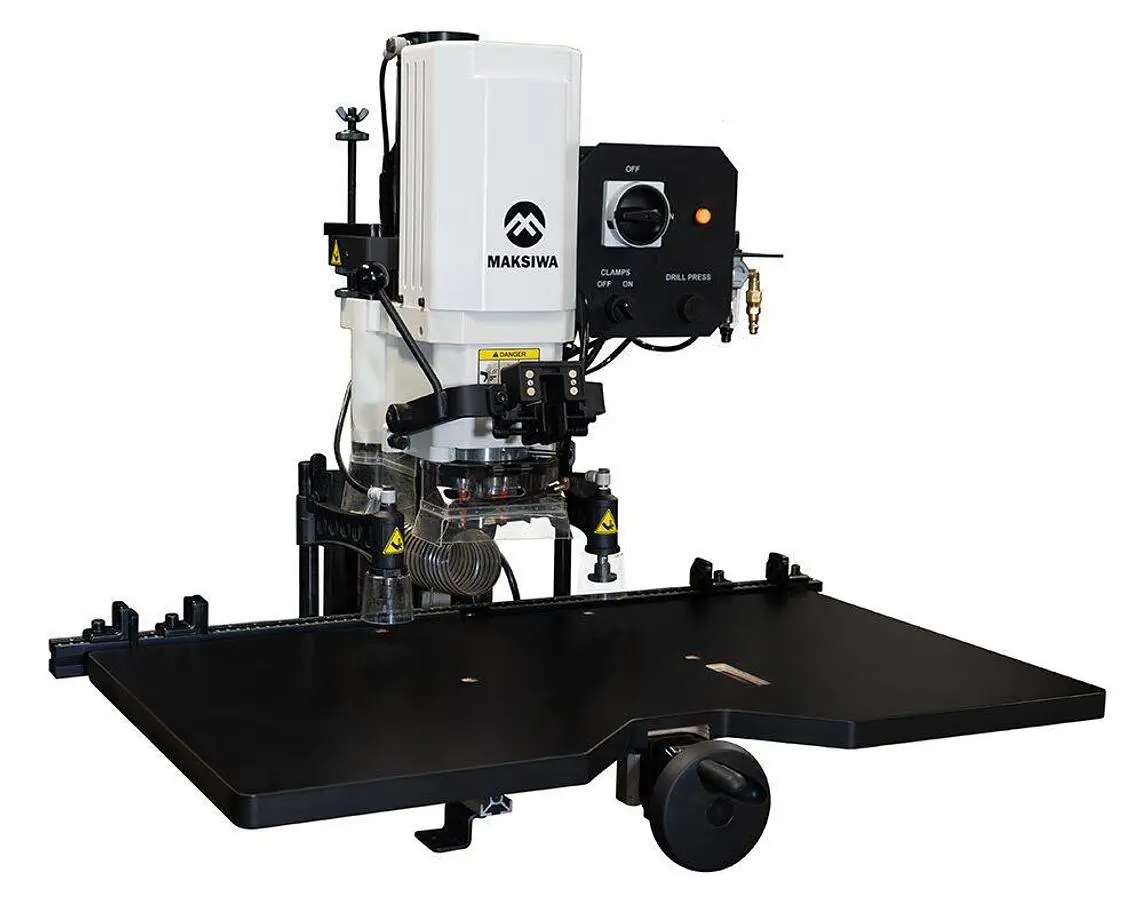

NEW MAKSIWA HBM.1000

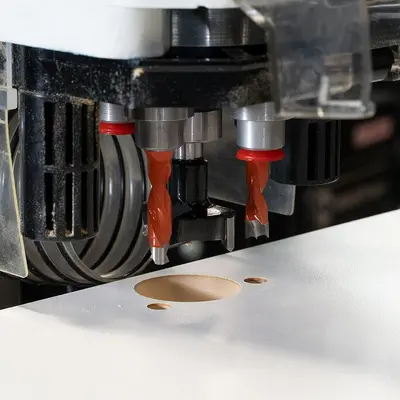

The Maksiwa HBM.1000 is a high-precision, compact machine designed for fast and efficient hinge and hardware installation in cabinetry and furniture production. Powered by a 1.5 HP motor, it delivers accurate 35 mm hinge cup bores with carbide-tipped bits, making it ideal for hinges, mounting plates, and connectors. With multiple drilling patterns, quick-set boring distance, and integrated dust collection, the HBM.1000 streamlines hinge installation while maintaining consistent, professional results. Simple setup, easy adjustments, and reliable operation make this machine perfect for production environments that demand speed and precision. All-in-one Boring & Insertion 1.5 HP motor 35mm hinge cup boring Multiple drilling patterns Quick-set boring distance Integrated dust collection Compact design Ideal for cabinetry, and

Electrical Specs: 1 Phase 110V 13.6Amps or 220V 6.8Amps
Motor Specs: 1.5 HP 1.1 KW 3400 RPM
Machine Dimensions: 33-7/16” x 28-3/8” x 31-1/2”
Boring Distance Center Spindle: 0 - 2-3/4” | 0 - 70mm
Table Size: 18" x 31-1/2"
Machine Table Height: 5-3/8"
Machine Table Depth: 2-3/4"
Hinge Boring Bit Diameter: Carbide Tipped - 35mm
Hinge Boring Bit Rotation: Right
Hinge Boring Shank: 10mm
Hinge Boring Length: 57mm
Drill Bits Diameter: Carbide Tipped - 8mm
Drill Boring Bits Rotation: Left
Drill Boring Shank: 10mm
Sound Rating: 78dB
Air Pressure Requirement: 90 PSI
Maximum Depth of Stroke: 4-5/16”
