| Swing | 28.13" | 714.5 mm |
| Machining Length | 78.74" | 2,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 10" | 254 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 24.4" | 619.76 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Fusion 640T) | CNC (Mazatrol Fusion 640T) |
| Dimensions | 208 x 82 x 100 | 208 x 82 x 100 |
| Weight | 21780 | 21780 |
Specifications (subject to buyer verification):
Maximum Swing Over Bed: 28.13” (715 mm)
Swing Over Carriage: 19.68” (500 mm)
Maximum Turning Diameter: 24.4” (620 mm)
Distance Between Centers: 78.74” (2,000 mm)
Capacity: 10,000 lbs
X-Axis: 14.75” (375 mm)
Z-Axis: 78.74” (2,000 mm)
Rapid Traverse Rate X-Axis: 787 IPM
Rapid Traverse Rate Z-Axis: 945 IPM
Spindle Bore: 7”
Maximum Bar Capacity: 10” (254 mm)

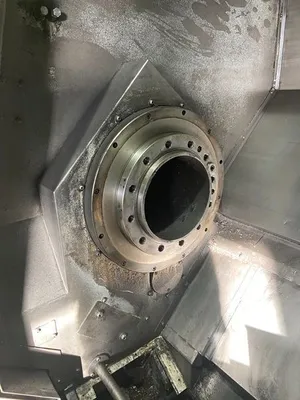

Spindle Nose: A1-15
Spindle Speeds (3 Speed Gear): 1,500 RPM
Spindle Motor: 40 HP

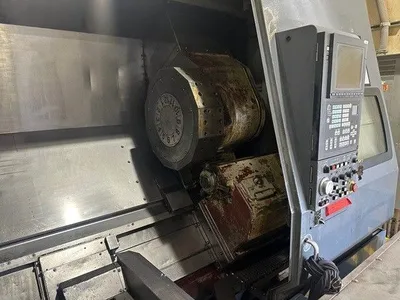

Tool Change Capacity: 12 Station Turret
Tailstock Quill Taper: MT-5
Tailstock Quill Diameter: 5.12” (130 mm)
Tailstock Quill Stroke: 5.12” (130 mm)
Tailstock Body Travel: 54.2” (1,375 mm)
Dimensions: 208” x 82” x 100”
Weight: 21,780 lbs (9,900 kgs)
Equipped With (subject to buyer verification):

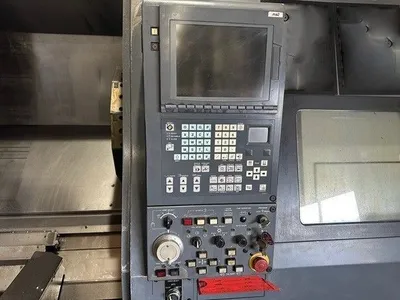

Mazatrol Fusion 640T CNC Control
Tailstock
Chip Conveyor and Pan
