NEW 2026 ADH WAD-1000 x 7000

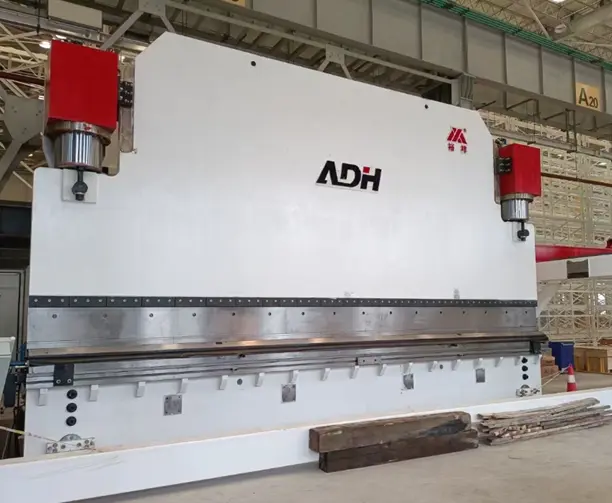

2026 ADH WAD-1000T x 7000 mm Hydraulic Press Brake, Y1,Y2, X, V (Motorized Crowning) axis
This machine is electro-hydraulic synchronous CNC bending machine with Y1,Y2, X, V axis . The frame is composed of oil tank, support, worktable, left and right wall plates and slider to ensure the structural strength of the frame. After welding, it is processed by stress relief and processed on a large floor milling-boring machine, especially the slider adopts vertical processing technology (because the working state of the slider is vertical) to ensure the straightness of the mounting surface of the top punch in the working state.
Founded in March 2002, Anhui Donghai Machine Tool Co., Ltd. (Brand: ADH) is a high-tech enterprise specializing in the production of press brake, hydraulic guillotine, fiber laser cutter etc.
ADH is a comprehensive leading enterprise in the machine tool industry in China, which integrates automatic control system design, new product research and development, and equipment manufacturing innovation platform formation.
Our factory is located in Bowang District, Ma'anshan City, Anhui Province, only 30 kilometers away from Nanjing Lukou International Airport and can be reached within 30 minutes by car.

Model Unit WAD-1000T/7000
Bending Force KN/m 10000 !,000 Tons
Bending Length mm 7000 (275.6")
Column Distance mm 5600 (220.5")
Throat Depth mm 600 (23.6")
Stroke mm 400 (15.7")
Open Height mm 920 (36.22")
Fast Speed Mm/s 80 (3.15")
Working Speed Mm/s 8.5 (.35")
Return Speed Mm/s 100 (3.94")
Oil Tank L 1900 (502 gallons)
Hydraulic Oil Standard / #46 Antiwear hydraulic oil
Power supply / 380V/50HZ/3PH
（As customer requirement)
Main Motor Kw 37*2 50HP
Weight Tons 99
Dimensions mm L×W×H 7310*4410*4680 (287.8"x173.6"x184.3")

Standard Components
Controller Delem DA53TX
Control Axis 3+1 (Y1, Y2, X+Crowning)
Hydraulic Valve Rexroth from Germany
Hydraulic Gear Pump Rexroth from Germany
Grating Ruler Fagor from Spain
Main Motor Innovance from China
Electrical Components Schneider from France
Crowning Motorized Crowning
Ball Screw and Linear Guide PMI/PYM from Taiwan
Servo Motor/ Servo Drive INVONCE from China
Tubing Connector JS/EMB from Germany
Clamps Heavy Clamp
Pedal Switch Roller Type from China
Front Protection Left & Right Guard
Rear Protection Fully Enclosed Rear Guard
