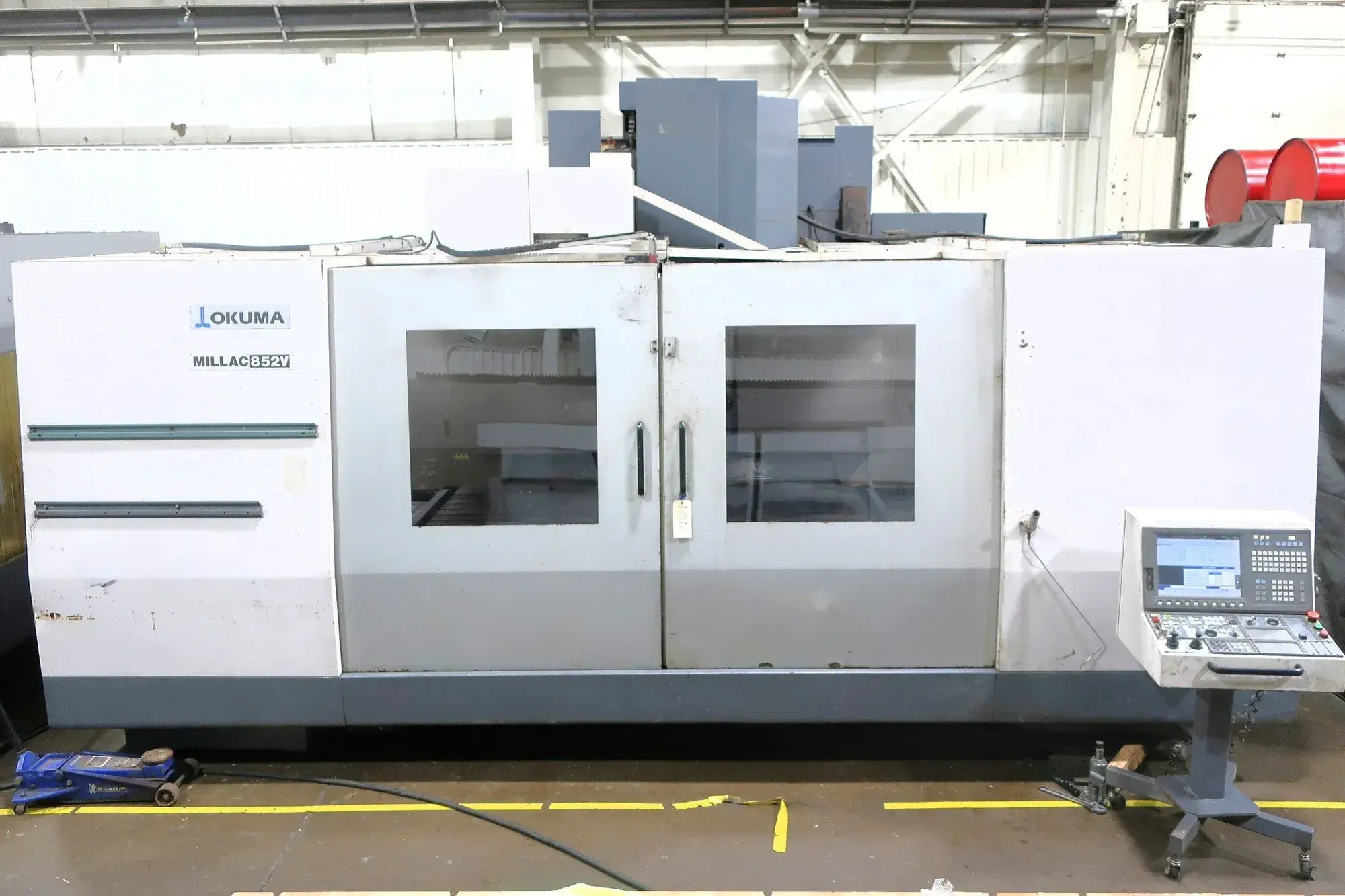

OKUMA MILLAC 852V, 2008 model, used vertical machining center with 80.7" X, 33.4" Y, 29.5" Z travel. Powered by a 30 hp motor, 6,000 RPM spindle, CT-50 taper, and 36 ATC. Features high-pressure coolant, chip conveyor, and 86" x 35" table.
| X | 80.7" | 2,049.8 mm |
| Y | 33.4" | 848.36 mm |
| Z | 29.5" | 749.3 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 36 | 36 |
| Taper | CT-50 | CT-50 |
| Table-W | 35.2" | 894.08 mm |
| Table-L | 86.6" | 2,199.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (OKUMA) | CNC (OKUMA) |
X axis travel: 80.71"
Y axis travel: 33.46"
Z axis travel: 29.53"
Spindle motor: 30 HP
Spindle speed: 6,000 RPM
Spindle taper: 50 CT
Tool changer: 36 ATC
Rapid rate x axis: 630 IPM
Rapid rate y axis: 630 IPM
Rapid rate z axis: 630 IPM
Max tool weight: 44.0 LBS
Max tool diameter: 4.72" Full
Tool change time: 2.5 Sec
Spindle nose to table: 7.87 – 37.4" Max
Spindle center to column: 35.43
Table size: 86.6" x 35.24"
Dimensions: 205.4" x 166.8" x 124.44"
Weight: 33,069 LBS
OKUMA OSP P200M CNC CONTROL
86" X 35" TABLE
6000 RPM 50 TAPER SPINDLE
HIGH PRESSURE COOLANT
36 POSITION TOOL CHANGER
CHIP CONVEYOR
