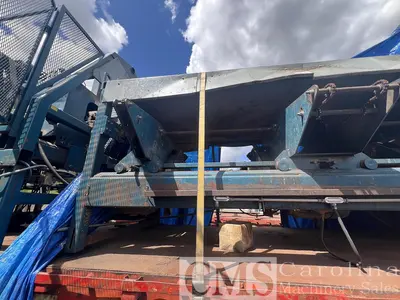

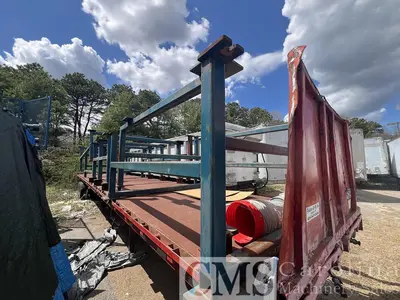

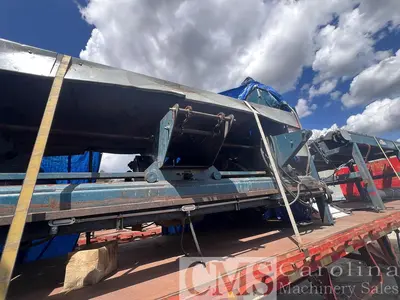

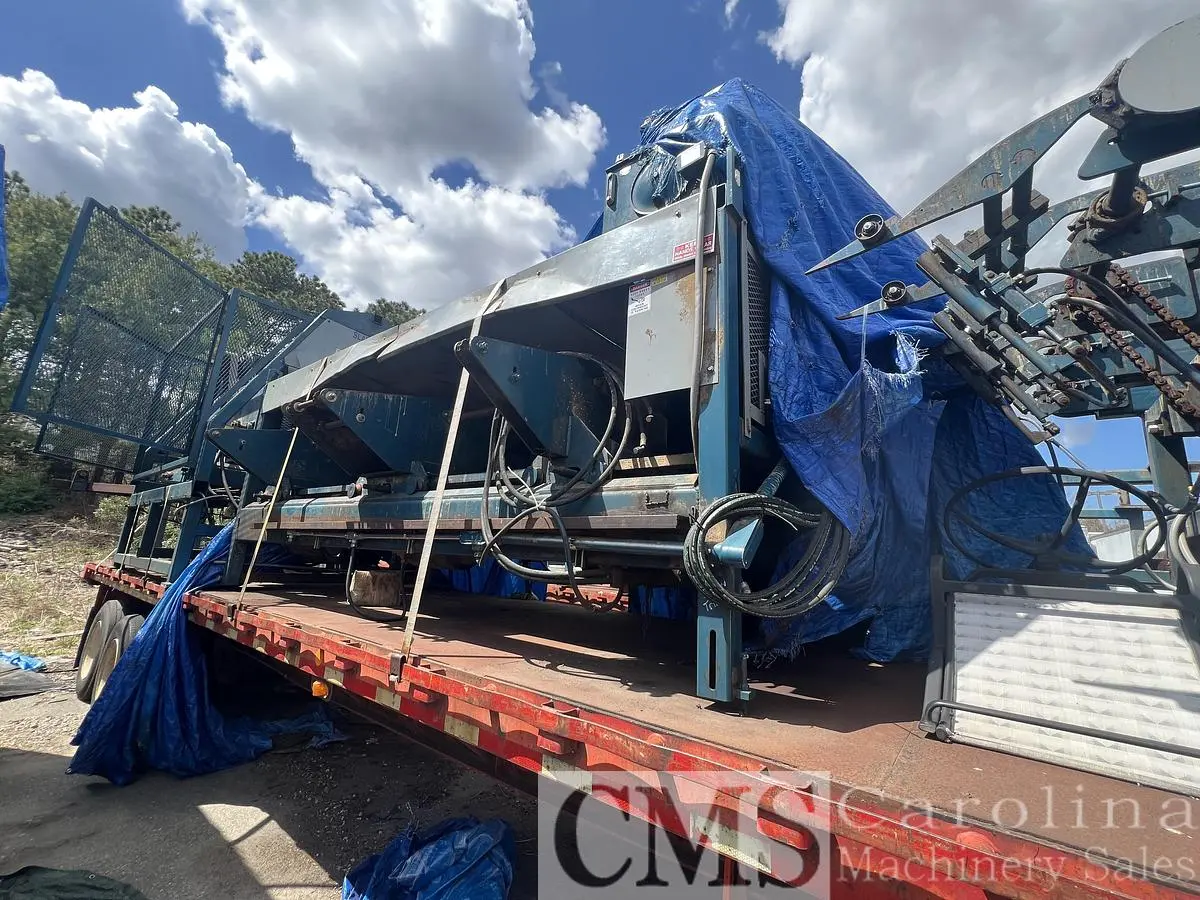

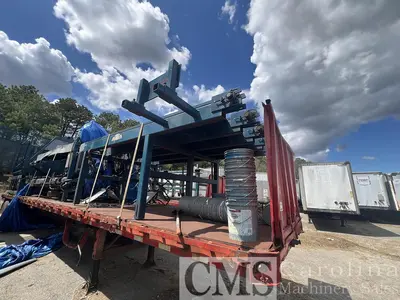

USED 2015 BREWER GOLDEN EAGLE 3-HEAD TRIM SAW

This unit is already dismantled and ready to load. There are multiple decks and conveyors also available at this location.
Maximum slab length 96"
Minimum slab length 24"
Maximum thickness of cut 6" with 24" blades
Minimum thickness of cut 5/8"
(3) saw units each with 15 HP 1800 RPM TEFC motor
(2) belt drive
22" carbide tipped saws with 6" collars
(2) 1 5/8" arbor bearings
Better control of lumber with undercut saws allowing running of boards & cants.
Saws adjust freely from front or back with rack & pinion drive with heavy duty lock
downs to prevent movement during operation. Tracking on 3 1/2" V-wheels for
precise alignment & eliminates sawdust buildup on main rails.
Aluminum dogs with heavy duty chain (powered by variable speed hydraulic system).
This enables you to determine the speed the material will run through the saw.
30 gallon JIC flat top reservoir, 10 hp Electric pump motor with Commercial Intertech
Cast Iron gear pump operating the saw hydraulic motor drives via Continental
Hydraulics Industrial Solenoid directional valves and Sun pressure compensated Flow
controls. Schroeder Industries Z media 10 micron absolute filtration. Eaton Char-Lynn
S+ Series and 2000 Series Hydraulic Motors.
Includes in feed even end rolls with pop down separator gate
* Includes 10' out feed product Rolls. Designed to receive slabs coming from the
trim saw to feed them to bandsaw. 10' long with 5 1/2" rolls, 1 7/16" bearings and #60
chain, 6" structural frame. Powered by feed system on trim saw.
28' long bed x 18" wide belt flat conveyor under trimsaw designed to take away
sawdust and scrap. 6" head pulley and 5" tail pulley with smooth top belt. Powered by
hydraulics from trimsaw. Includes controls in console at trimsaw.
