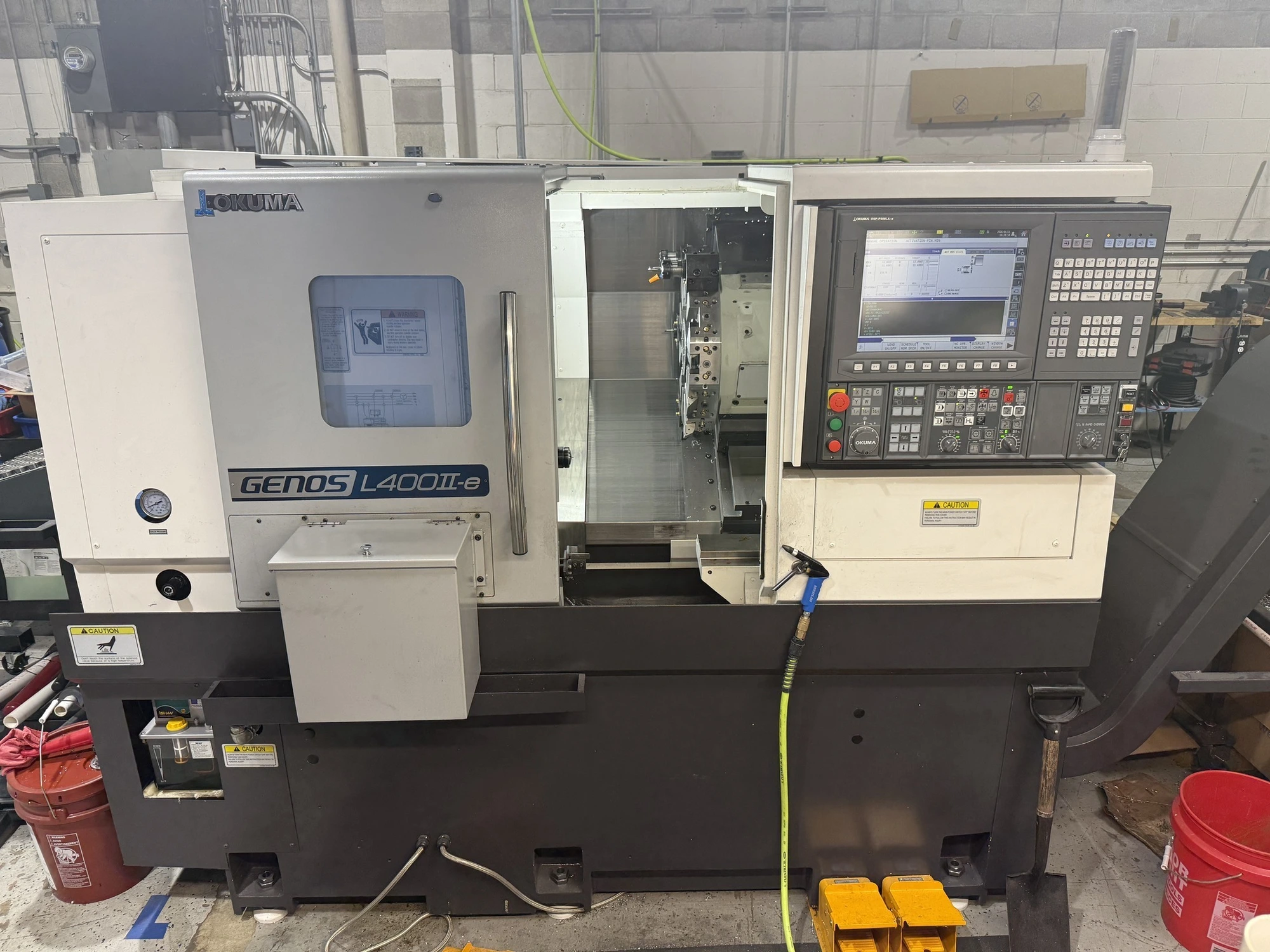

CNC Lathe, used, features a swing of 20.47", 2-axis, 10" chuck, 3.15" bar capacity, 20 hp power, and max 3,000 RPM. Includes OSP-P300LA-e CNC control, chip conveyor, programmable tailstock, and Marposs tool presetter. Only 105 cutting hours.
| Swing | 20.47" | 519.94 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.15" | 80.01 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 15.35" | 389.89 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Okuma OSP-P300LA-e) | CNC (Okuma OSP-P300LA-e) |
| Dimensions | 140" x 85" x 77" | 140" x 85" x 77" |
| Weight | 10,000 pounds | 10,000 pounds |
Swing 20.47"
Turning Diameter 15.35"
Center Distance 20.47"
Chuck Size 10"
Bar Capacity 3.15"
X-Axis Travel 8.66"
Z-Axis Travel 20.47"
Spindle Nose A2-8
Spindle Speed 3,000 rpm
Main Motor 20 hp
Turret Capacity 12
OSP-P300LA-e CNC Control
Chip Conveyor
Programmable Tailstock
Marposs Tool Presetter
Collet Chuck on Main Spindle
10" Kitagawa Chuck Available
One Touch IGF (Conversational Programming)
Only 105 Cutting Hours
