AZ spa Model CG 650/2 CNC 6,400mm Semi-Automatic Crankshaft Grinder

STOCK NO. ET-5702
AZ spa Model CG 650/2 CNC Semi-Automatic Crankshaft Grinder
S/N: TM2007/02
Year of Manufacutre: 2007
Machine Rebuilt and Retrofitted by Toyoda Grinding 2019!
(Ground total of 5 crankshafts after rebuild because customer took delivery of new Landis CBN Grinder)

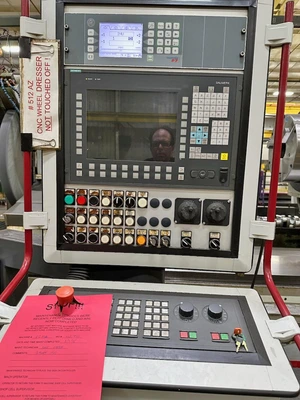

Siemens 840D Powerline CNC Control System
Max. Part Swing: 1,300mm
Center Height: 650mm
Max. Crankshaft Length: 6,400mm
Main Grinding Spindle Motor Power: 30/37Kw
Grinding Wheel Slide Travel: 650mm
Marposs P7 In process Gage System
Marposs Fenar L Auto Compensation System
Acoustic Sensor for Wheel Gap Elimination
Constant Surface Finish
Roundness Compensation
CNC Grinding Wheel Dresser 2-Axis, Hi-Speed Rotary Diamond Wheel Dresser Mounted Horizontally
capable of Radius & Side Wheel Dressing.
Grinding Wheel, Aluminum Oxide 1,300mm Diameter
Heidenhain Main Table Scale
Heidenhain Glass Scale on Grinding Wheel Slide
Manual Radial Indexing
Table Steady Rests
Counterweights
Coolant System w/ Chiller
