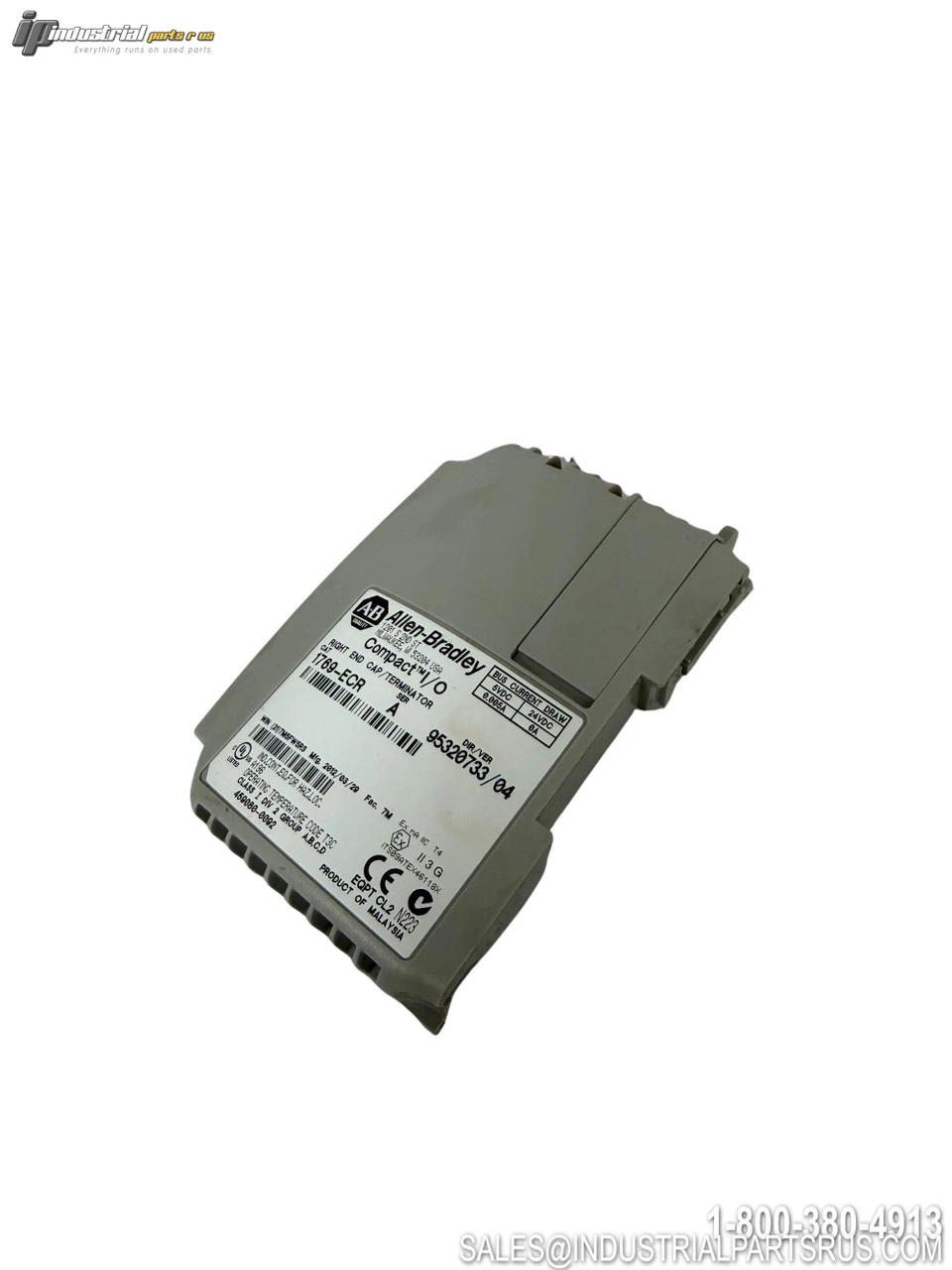

USED ALLEN-BRADLEY 1769-ECR

The Allen-Bradley 1769-ECR is a right end cap/terminator module designed specifically for use with CompactLogix controllers and 1769 Compact I/O systems. This module functions as a bus terminator that terminates the end of the communication bus, ensuring proper signal integrity and system performance. The module is essential for qualifying the CompactLogix configuration and maintaining reliable system operation.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1769-ECR
Type
PLC Chassis
Platform
CompactLogix
Controller Platform
CompactLogix
Function
Right End Cap/Bus Terminator
Current Draw
5 mA at 5.1 VDC
Enclosure Type
Open Style
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Operating Humidity
5-95% Non-condensing
Operating Altitude
2000 m (6562 ft)
Mounting Type
DIN Rail, Panel
Weight
130 g (0.286 lb)
Dimensions (H x W x L)
4.65" x 3.35" x 1.26"
Certifications
C-TICK, CCC, CE, CUL, GOST, KC, MARINE, UL
UPC
662468993043
We warranty all items for 30 days from date of purchase.
