USED 2021 FLEXICON CORPORATION BFH-C-X BULK-OUT SYSTEM WITH FLEXIBLE SCREW CONVEYOR
Overview

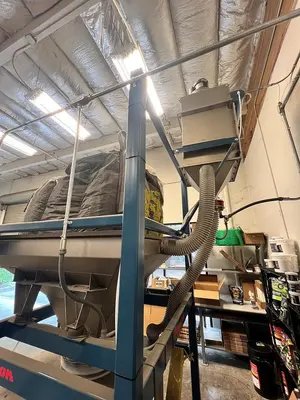

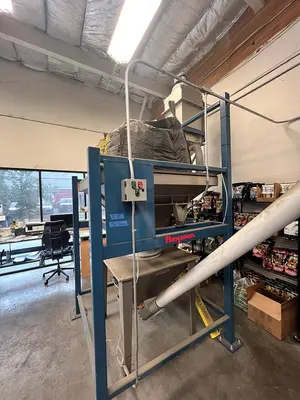

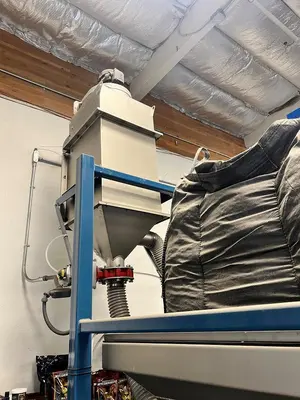

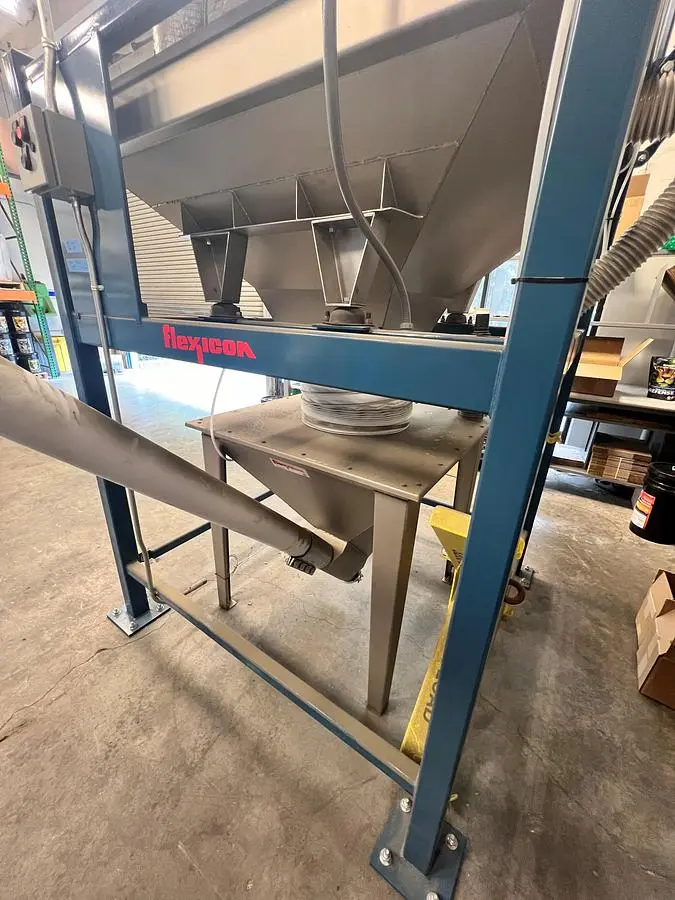

Flexicon BULK-OUT bulk bag discharge and conveying system rated for 3,200 lb bags, constructed of mild steel with safety frame and hoist-style lifting assembly. Includes bag piercer interface with sealed transition hopper and 8 cu. ft. (36" x 36" x 38") floor hopper with vented cover, pneumatic vibrator, and capacitive level controls. System equipped with dust collection unit (50 sq. ft. filtration area, 99.99% @ ≥5 micron) with 1/2 HP fan rated 400 CFM @ 3" S.P. Material conveyed via 15 ft flexible screw conveyor (4.5" OD UHMW tube) driven by 3 HP, 1,725 RPM gearmotor. Discharge through 6" dia. pneumatically actuated wye diverter valve with flexible PVC spouting. Includes NEMA 4 control panel with PLC, HMI, reversing starter, and 24 VDC controls for automated level-based operation and timed conveyor evacuation. System is in like-new condition, used only twice for test runs. Drawings and manuals available by request.
Specs
Stock Number: 5991752
Manufacturer: Flexicon Corporation
Model: BFH-C-X BULK-OUT System with Flexible Screw Conveyor
Year: 2021
Serial Number: TFC-00294566
Bulk Bag Capacity: Up to 3,200 lb
Dust Collector: 50 sq. ft., 99.99% @ ≥5 micron
Fan: 1/2 HP, 400 CFM @ 3" S.P.
Hopper Capacity: 8 cu. ft.
Hopper Dimensions: 36" x 36" x 38" H
Conveyor Length: 15 ft
Conveyor Tube: 4.5" OD UHMW
Conveyor Drive: 3 HP, 1,725 RPM, 3-phase
Diverter Valve: 6" dia., pneumatic
Air Requirements: 60–80 PSI
Controls: PLC with HMI, NEMA 4, 24 VDC
Electrical: 3 Phase, 60 Hz
Basis: As Is, Where is
