USED 2016 AMADA HG 1003 ARS

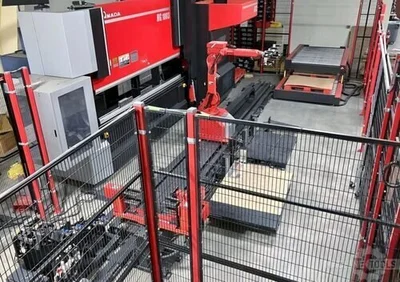

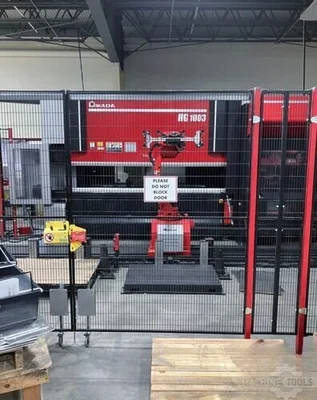

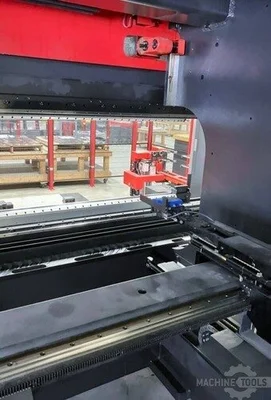

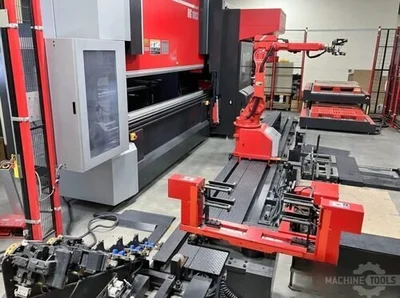

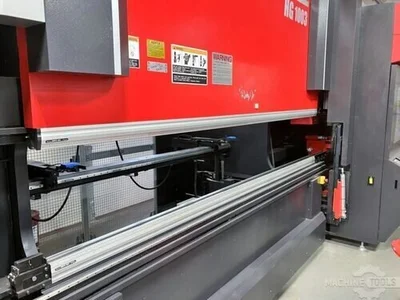

Amada HG1003ARS, Robotic Bending Cell Press Brakes (2016)

General Info

Stock #: 113260015
Brand: AMADA
Model: HG1003ARS
Year: 2016

Specifications

Tonnage: 100 T (90.719 t)
Bending Length: 120.5" (3060.7 mm)
Table Length: 122.4" (3109 mm)
Distance Between Housings: 106.3' (32.4 m)
Max Stroke: 9.8" (248.92 mm)
Throat: 17.7" (449.58 mm)
Open Height: 23.5" (596.9 mm)

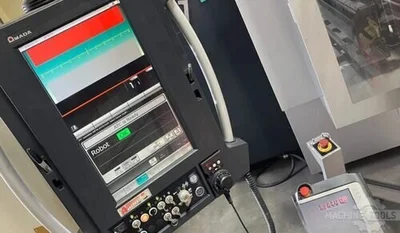

Control: AMADA AMNC 3i Control (Touch Screen 7-Axis)

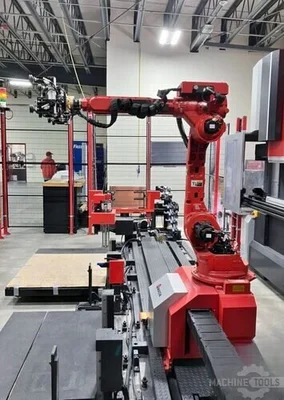

Robotic Arm: AMADA HGROBOT020/YASKAWA DX100 (44 lb Payload)
Drive System: Servo-Hydraulic (Hybrid) Press Brake with Hybrid Drive System

Equipped With

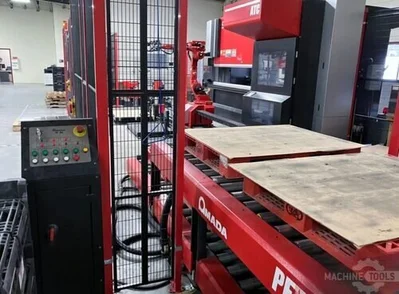

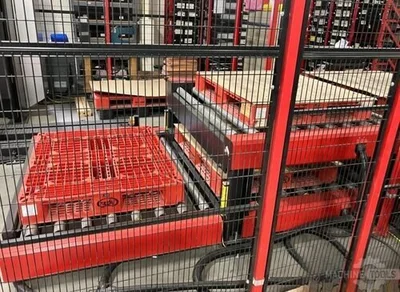

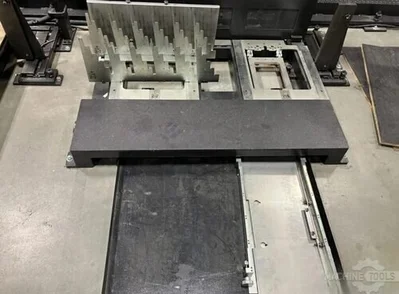

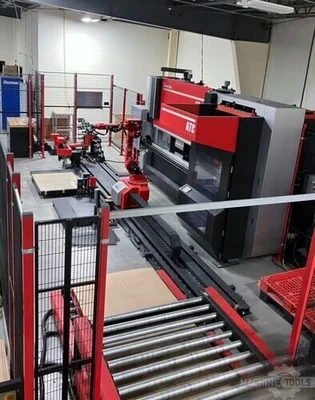

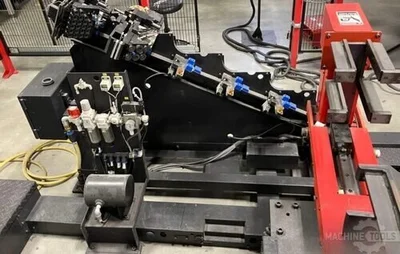

Robotic Bending Cell, Automatic Tool Changer (Capable of Storing up to 15 Punch Stockers & 18 Die Stockers), Automatic Gripper Changer, Roller Table/Conveyor for Finished Parts (AMADA PF-A3), An Assortment of Dies & Punches (Full List Available Upon Request)

Additional Info

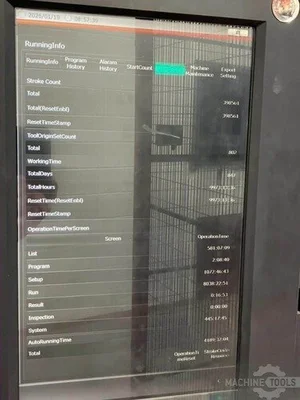

As of February 2026, Run Time – 4,189 Hours, In Plant, Under Power, Available for Immediate Inspection & Purchase, Full Replacement Cost as Equipped - $850,000+
