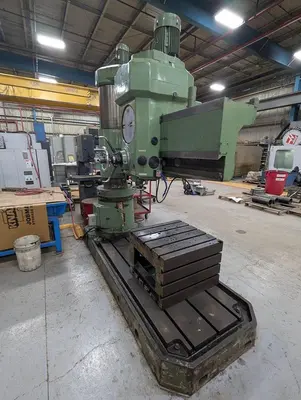

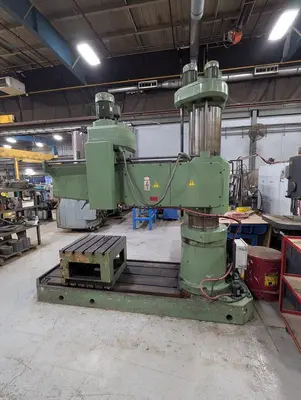

USED 1998 POBEDA RB 70-1600

The RB 70-1600 Radial Arm Drill from Pobeda is a robust and reliable used industrial machine designed for heavy-duty drilling tasks. It has a drilling capacity of 80 mm, a boring capacity of 130 mm, and can tap up to M76x2 mm. The machine's spindle is equipped with an MT#5 taper, facilitating easy tool changes.

This radial arm drill features a quill stroke of 400 mm and a vertical crossbeam stroke of 1,100 mm, with a travel range extending up to 1,600 mm, allowing flexibility for a variety of processing operations. The machine provides a working power of 7.5 kW, ensuring efficient performance in demanding drilling tasks.

With a minimum to maximum distance from chuck nose to table plane of 500 mm to 1,600 mm and weighing in at 4,600 kg, the RB 70-1600 promises stability and reliability during operations. Its design makes it suitable for workshops requiring precision and effectiveness in metalworking.

Capacity: 80mm × 1,600 mm
Quill stroke (w): 400 mm
Vertical cross beam stroke (z): 1,100 mm
Travel: 1,600 mm
Drilling capacity: 80 mm
Tapping capacity: M76x2 mm
Boring capacity: 130 mm
Spindle taper: MT#5
Min-max distance of chuck nose table plane: 500 mm - 1,600 mm
Power: 7.5 Kw
Machine weight: 4,600 Kg
