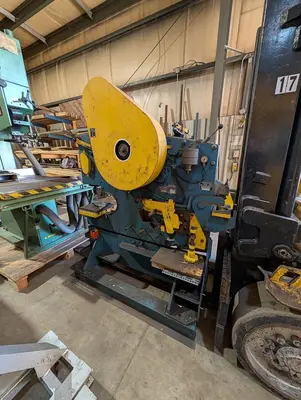

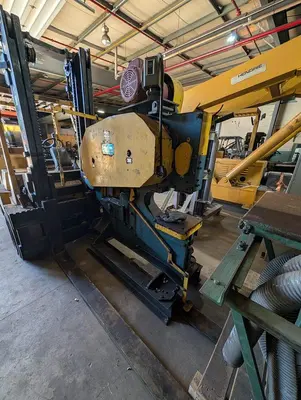

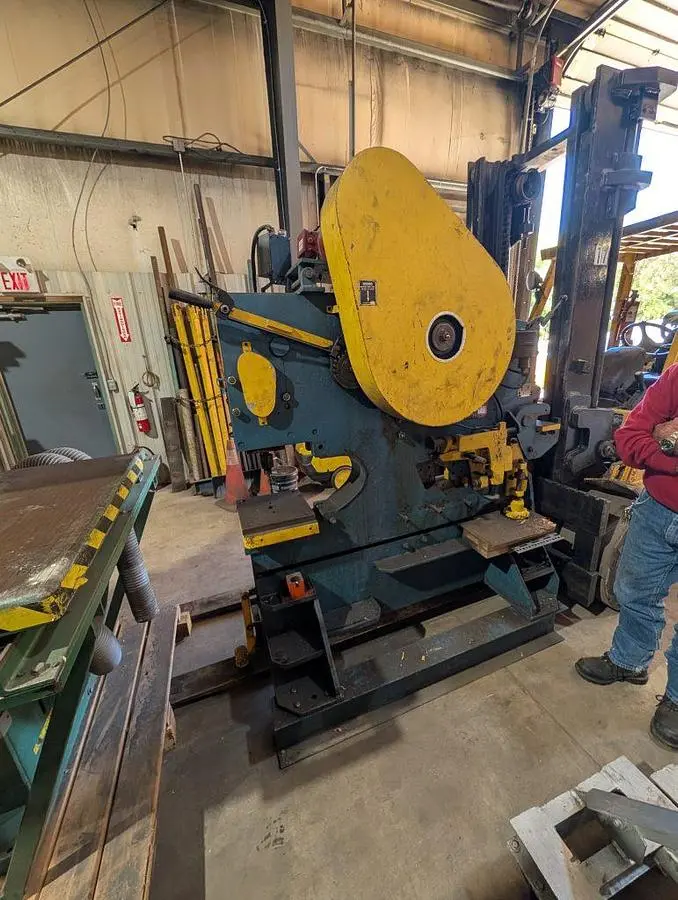

USED KINGSLAND J21

The Kingsland J21 Ironworker is a robust piece of fabricating equipment designed for versatile metalworking tasks. With a punching capacity of 66 tons, this machine is capable of precise operations including punching a maximum diameter of 1-1/8" through 5/8" thickness. The 15" throat depth enables handling of various material sizes, enhancing the machine's flexibility.

Shearing capabilities are significant, able to cut angles at 90 degrees up to 5" x 5" x 1/2" and rounds and squares up to 1-5/8". Additionally, it efficiently handles flats measuring 6" x 3/4" and channels up to 6" x 3". Notching is another strength with a 2" x 2-1/2" x 3/8" capacity on the punch end. Operating at 38 strokes per minute, this machine is both efficient and reliable.

Powered by a 5-horsepower motor, the Kingsland J21 is well-suited for demanding industrial environments, ensuring durability and consistent performance. Having been previously used, it offers an economical option for businesses in need of dependable fabricating capabilities.

Punching capacity: 66 TONS
Stroke: 1″
Maximum diameter thru thickness: 1-1/8″ X 5/8″
Depth of throat: 15″
Shearing capacities angles @ 90 degrees: 5″ X 5″ X 1/2″
Angles @ 45 degrees: 4″ X 4″ X 3/8″
Rounds: 1-5/8″
Squares: 1-5/8″
Flats: 6″ X 3/4″
Tee @ 90 degrees: 4″ X 4″ X 1/2″
Channel @ 90 degrees: 6″ X 3″
Strokes per minute: 38

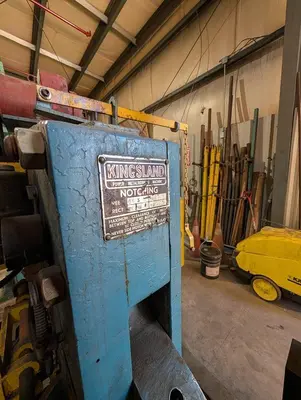

Notcher on punch end: 2″ X 2-1/2″ X 3/8″

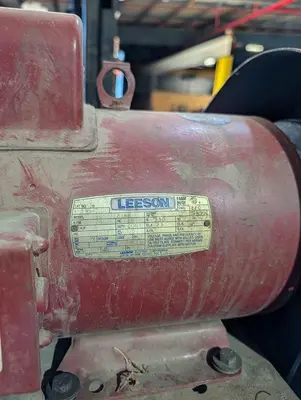

Motor: 5 HORSEPOWER
