NEW 2025 CYCLEMATIC CTL-618E

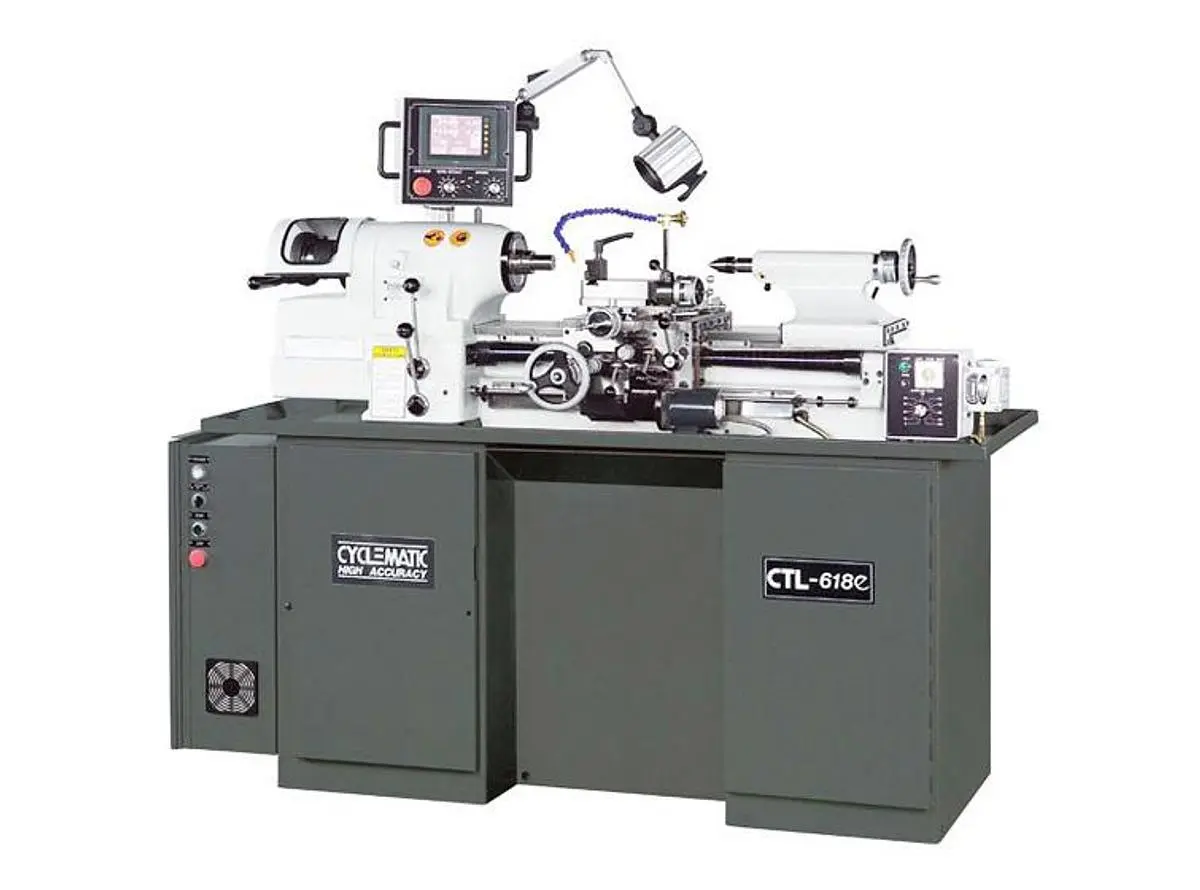

The Cyclematic CTL-618e is a high-speed, high-accuracy toolroom lathe designed for precision and ease of use, featuring digital threading control that replaces the traditional threading gearbox. This model leverages a computer-controlled servo motor directly connected to the leadscrew, allowing users to select thread pitches easily via a touchscreen display. The digital interface also provides crucial metrics such as spindle speed, cutting feed rate, and DRO functions, ensuring precise and efficient operations.

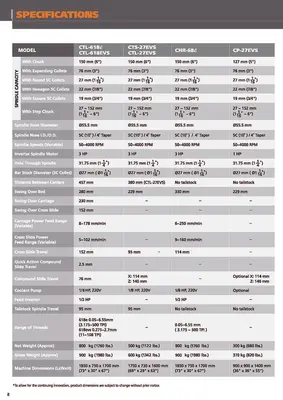

The CTL-618e boasts a spindle speed range of 50-4,000 rpm with a 5C setup, and 50-3,000 rpm when fitted with a 6" 3-jaw chuck. Its spindle capacity includes options for various collets, with the ability to handle expanding collets up to 152 mm (6"). The machine features a robust 3 HP inverter spindle motor and a 1/2 HP feed inverter motor, ensuring consistent performance. It also includes a comprehensive range of thread pitches from 0.55 to 6.55 mm (3.175 to 500 TPI).

With a swing over bed of 280 mm (11") and a distance between centers of 457 mm (18"), the CTL-618e offers ample space for a variety of workpieces. Other features include a tailstock spindle travel of 95 mm and a tailstock spindle taper of MT. #2. This lathe is ideal for those seeking a reliable and versatile machine in their toolroom operations, offered in brand new condition and ready for immediate delivery.
This lathe doesn't use threading gearbox, instead computer-controlled servo motor is directly linked to the leadscrew. Just use your finger to select desired thread pitch on the touchscreen display, the threads come out absolutely precise and you totally eliminate problems with specialized threads.The disply also shows spindle speed, cutting feed rate and DRO functions.
