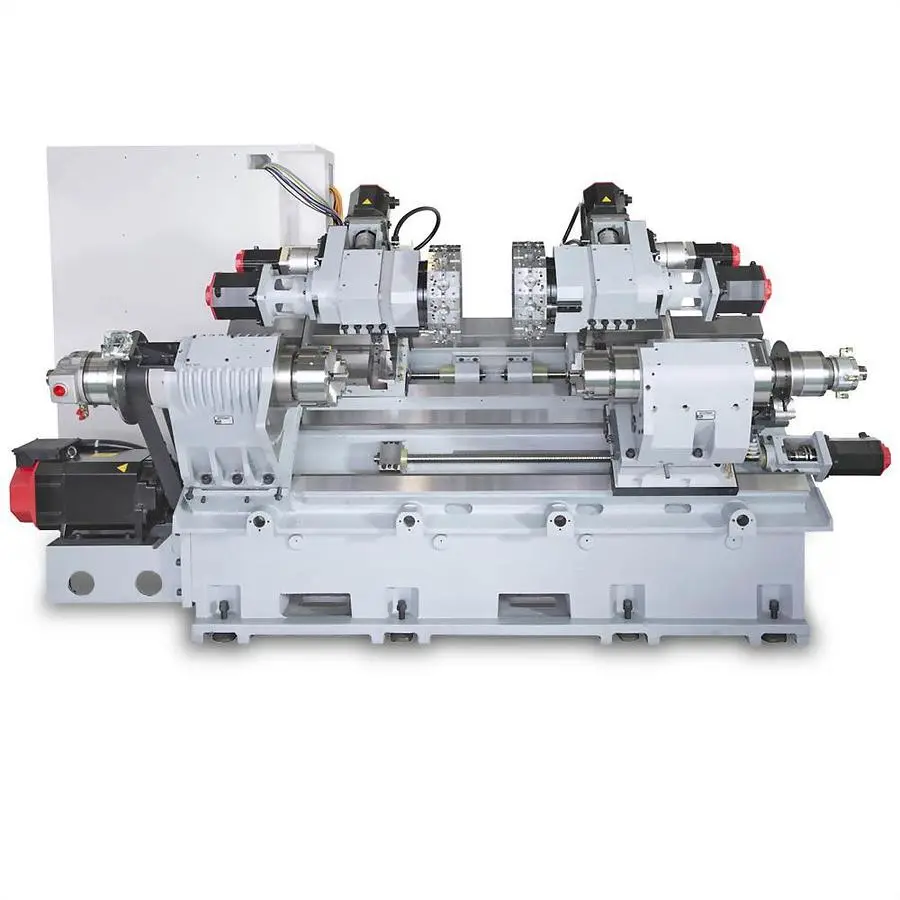

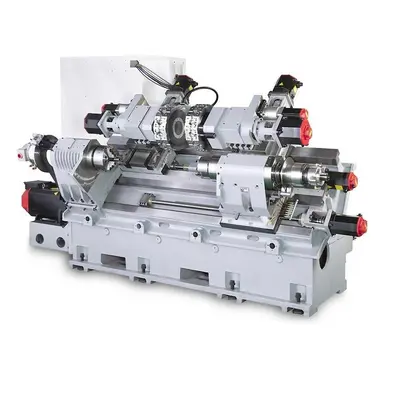

NEW ACCUWAY UT-2000T2M

Slant Bed Turning Center

Controller: FANUC 0i-T
Swing over bed: mm 600
Swing over saddle: mm 260
Max. Turning Diameter (SP1): mm 220
Max. Turning Diameter (SP2): mm 220
Max. turning length (SP1): mm 240
Max. turning length (SP2): mm 350
Guide way type: Box
Spindle Nose: ASA A2-5
Chuck Diameter: inch 6
Bar Capacity: mm 44
Spindle Speed: rpm 6000
Spindle Motor Power(Cont. /30min): kW 5.5/7.5
X-axis Travel: mm X1/X2 : 220
Z-axis Travel: mm Z1/Z2 : 350
B-axis Travel: mm 850
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 20
B-axis Rapid Traverse Rate: m/min 20
Tooling system: BMT-40
Turret driven type: Servo mechanical
Number of tools: station 12+12
Square tool shank size: mm 20
Round tool shank size: mm 32
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W x H: m 4.7 x 2.1 x 2
Net weight: kg 7000
