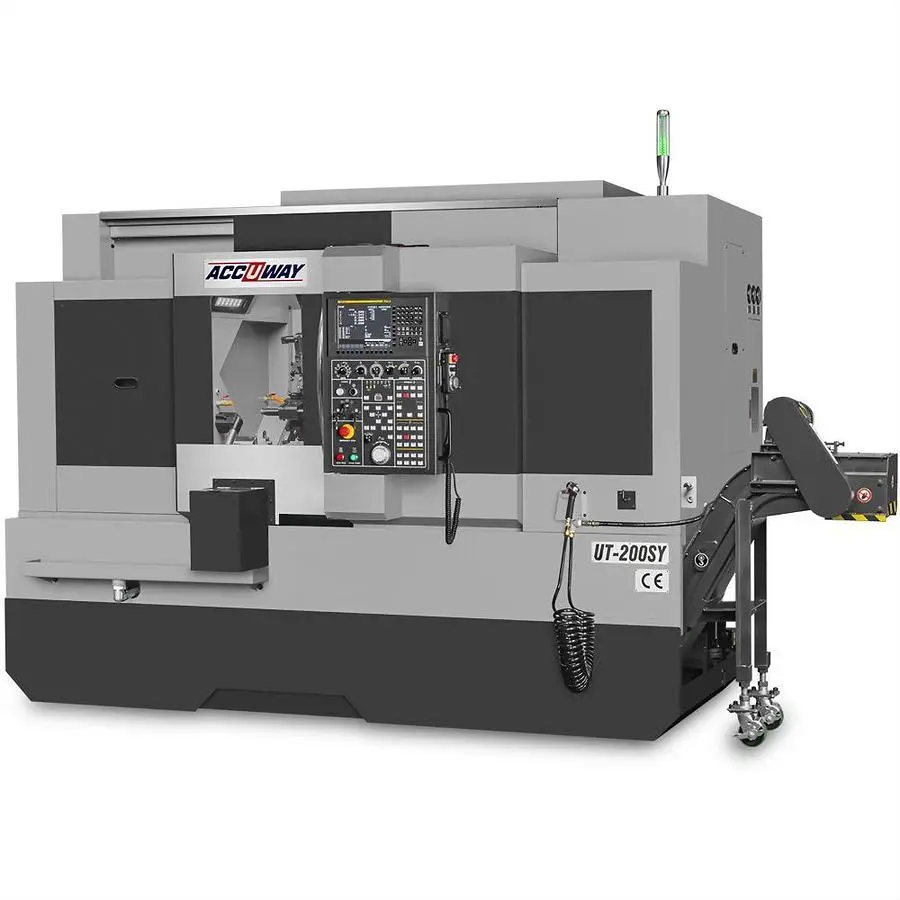

NEW ACCUWAY UT-200SY

Slant Bed Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Three-color warning light

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Collect chuck
Tool setter
Parts catcher and parts conveyor
Bar feeder interface (7 or 24 pins)
Bar feeder
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Transformer
CE version
Linear scale
0 degree rotary tool holder(UT-200SM)
90 degree rotary tool holder(UT-200SM)

Controller: FANUC 0i-T
Swing over bed: mm 680
Swing over saddle: mm 485
Max. turning diameter(SP1): mm 240
Max. turning diameter(SP2): mm 200
Max. turning length: mm 440 360
Guide way type: Box
Spindle nose taper: ASA A2-5
Chuck diameter: inch 6 8
Bar capacity: mm 44
Spindle speed: rpm 6000 5000
Spindle motor power(Cont. / 30min): kW 5.5/7.5
X-axis Travel: mm 220
Z-axis Travel: mm 600
Y-axis Travel: mm ±50
B-axis Travel: mm 585
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 20
Y-axis Rapid Traverse Rate: m/min 10
B-axis Rapid Traverse Rate: m/min 20
Tooling system: BMT/VDI
Turret driven type: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 20
Round tool shank size: mm 32
Max. Rotary Tool Speed: rpm 6000
Rotary Tool power: kW 3.7/5.5
Machine dimension L x W x H: m 3.2 x 1.8 x 2.2
Net weight: kg 4500
