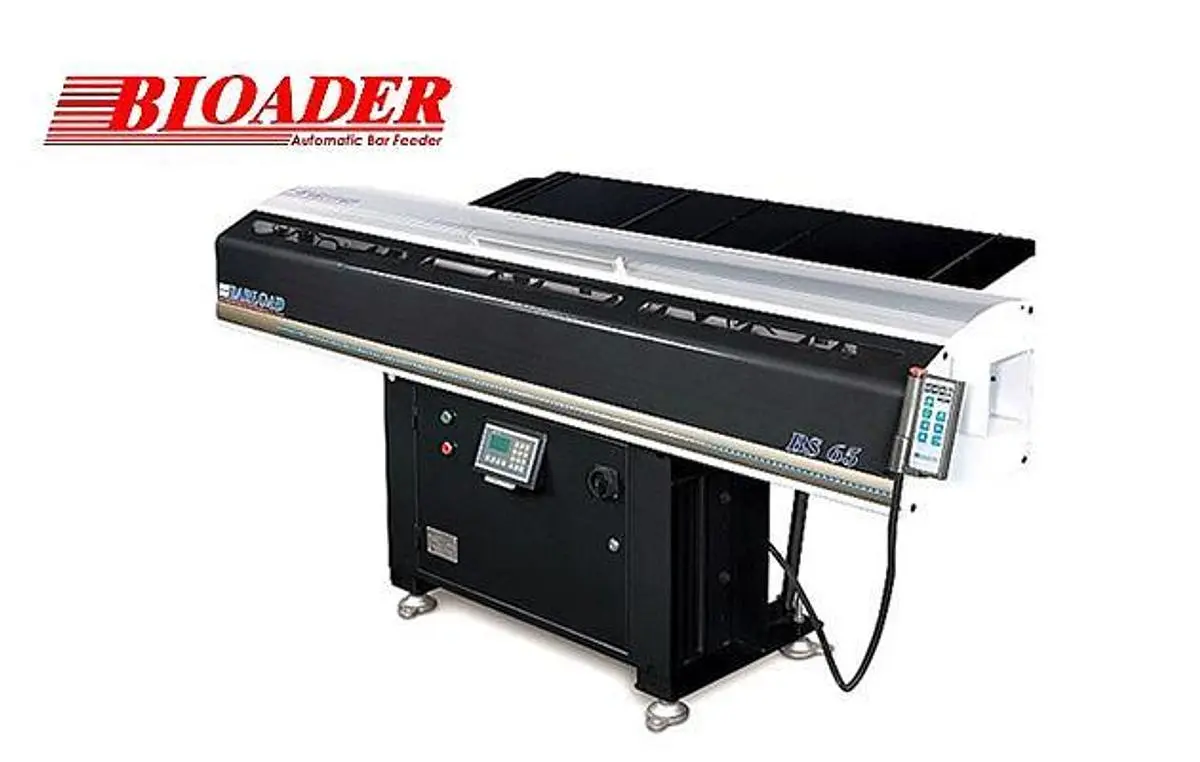

NEW BARLOAD BS65

Productivity increases and reduces manufacturing costs
No RPM limit leads to free vibrations.
Fast and smooth bar loading cycle
Smoothly pushing motion combines with right liner guide sets.
A V-guide-channel set adjusts easily in bar loading.
A convenient remote controller.
An external LED display advantages to figure how bar material positions forward.
A movable rail making more room allows an easier job on spindle maintenance.
A servo feeding features an accurate positioning bar without a turret stopper.
A screen display shows alarm messages easy to troubleshoot.
New design top-cut system, precision measuring with a small diameter.
A hi-end PLC controller is with completed software concept and module-assembly electrical cabinet.
A servo feeds fast and accurately, no risk of feeding impact .
Easily adjust for bar diameter changeover.
Quickly and easily adjust a V-guide-channel set for loading bar material.
A remote control box is durable and conforms with ergonomics.
A movable rail making more room allows an easier job on spindle maintenance( X or Z axis as optional )

Bar Diameter: 5-65mm
Bar Capacity: 65mm/10 pcs
Bar Length: MAX 1.2M，1.5M，1.8 M DEPEND ON MACHINE SPINDLE LENGTH
Machine Weight: 265KGS，280KGS，330 KGS
Air Pressure: 6kg/cm² 70psi
Power Supply: 220V
Power Consumption: 575W
