No adjustment is required for material clamping(patented)
Concealed and safe wiring
A material change is quickly accomplished
Torque and speed are adjustable to meet the requirement
Oil and remnants are separately collected

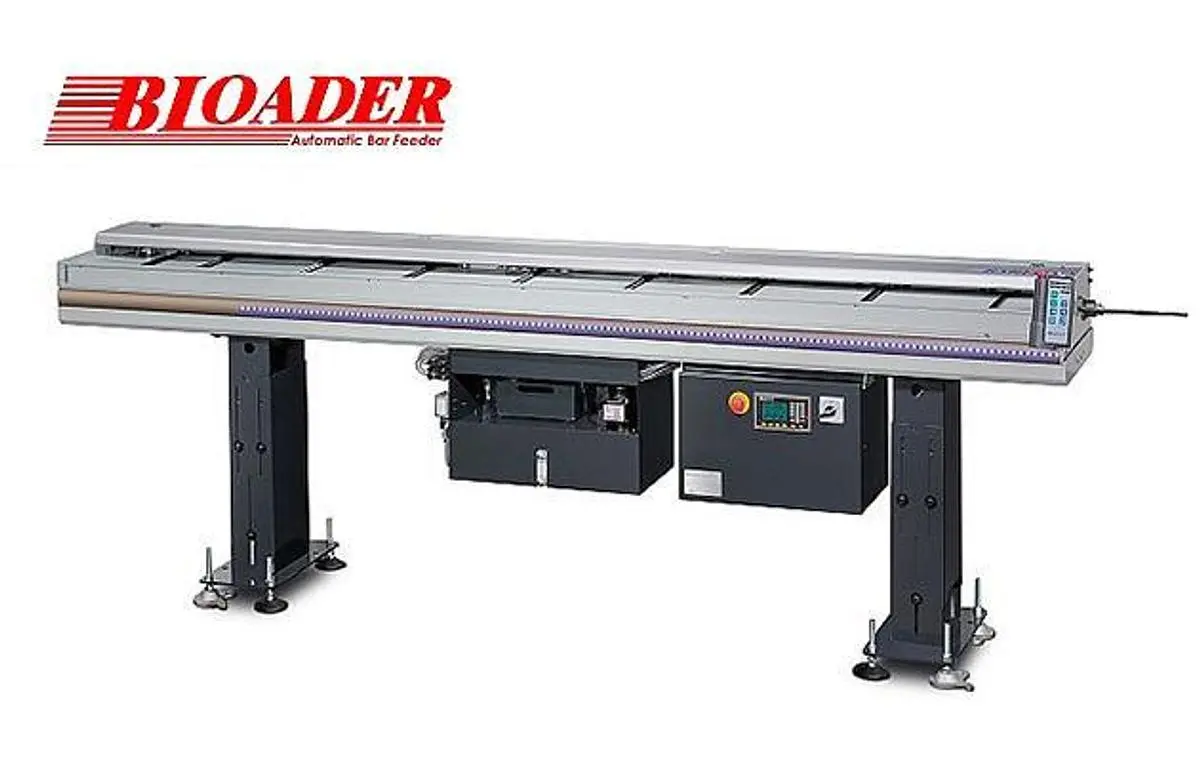

The MN series bar feeder employs PLC control in combination with personified human-machine interface,providing easy setting and operation.Multiple mode selections meet various application requirements.

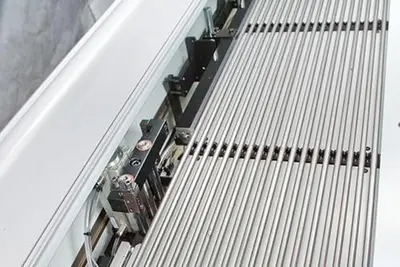

The loading capacity of the device is :Φ1mm~7mm bar:35 piecesΦ7.1mm~12mm bar:18 pieces
Choice of various sizes of guide channel: Φ5, Φ8, Φ13mm
The MN series bar feeder provides fast change of guide channel for saving time and increasing efficiency.
Suitable for right hand or left hand type lathe.User-friendiy operation for bar loading and machine operation.
The non-oil film type is applicable for various lathes.Choice of 2M and 2.5M
Applicable Lathe Type: Fix Head Type,Swiss Type
Feeding Direction: LEFT,RIGHT
Specifications: 2.0M,2.5M,3.0M,3.6M
Guide Channel: 5mm,8mm,13mm
Bar Diameter: 0.8-4mm,1-7mm,2-12mm
Bar Capacity: 1-7mm/35pcs , 7.1-12mm/18pcs
Bar Length: 2100,2800,3100mm
Machine Weight: NON-OIL FILM TYPE 2.0M-270KG,2.5M-300KG OIL FILM TYPE 2.0M-350KG,2.5M-380KG,3.0M-410KG
Air Pressure: 6 kgf / cm² 70 psi
Transmission: SERVO MOTOR
Lubricant: FK ISO VG68,FK HYDRAULIC OIL 68
Oil Tank Capacity: 26L(6.5 GALLON)
Power Consumption: 685W
Power Supply: 1Φx 220v 50/60Hz
