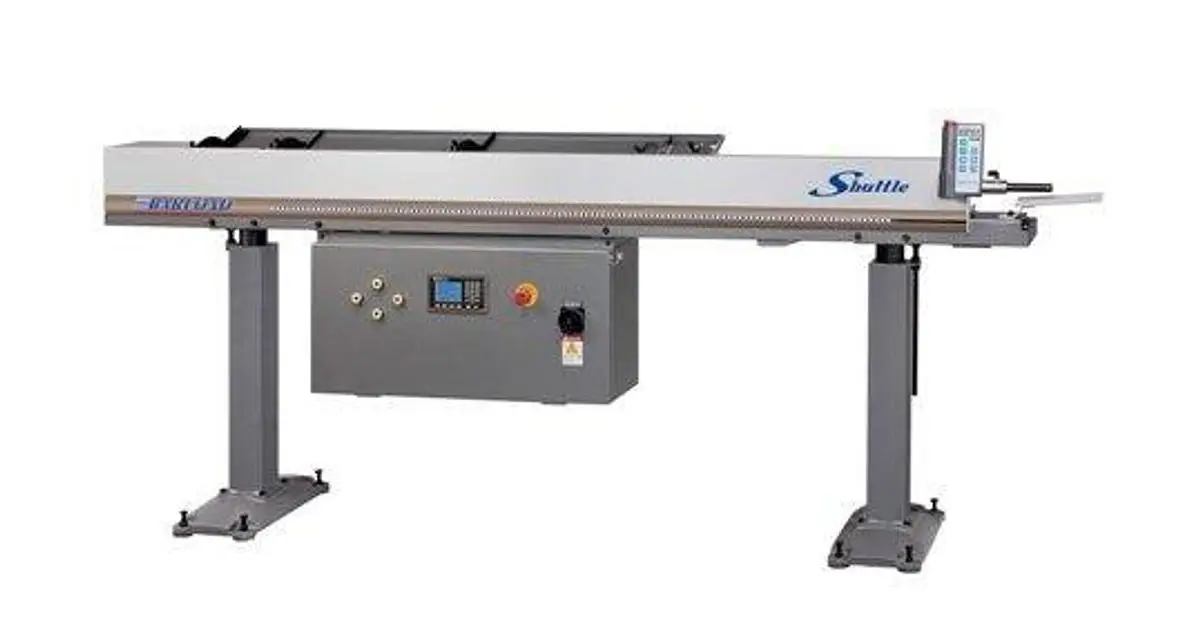

A 12-mm-fixed-type-special-purpose machine
Suited for fixed-type lathes like Tsugami BM16 or Citizen B-12.
A feeding type without finger chuck.
Allows free RPM limit.
A quick job on guide channel setchangeover.
A new-design-loading system is easy to adjust.
A PLC control with servo feeding system, fast and accurate.
Bar Length: 1500 mm(Max 1600 mm)
Guide Channel: 13mm
Machine Weight: 210KGS
Bar Diameter: 2-12mm
Transmission: SERVO MOTOR
Power Suppply: 1x220V 50/60Hz
