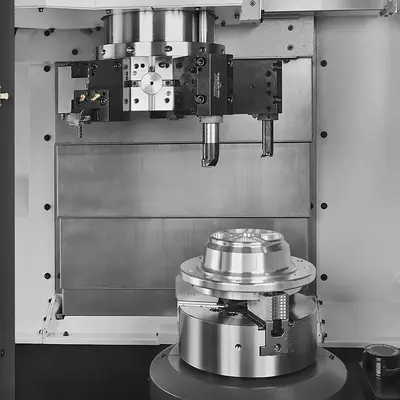

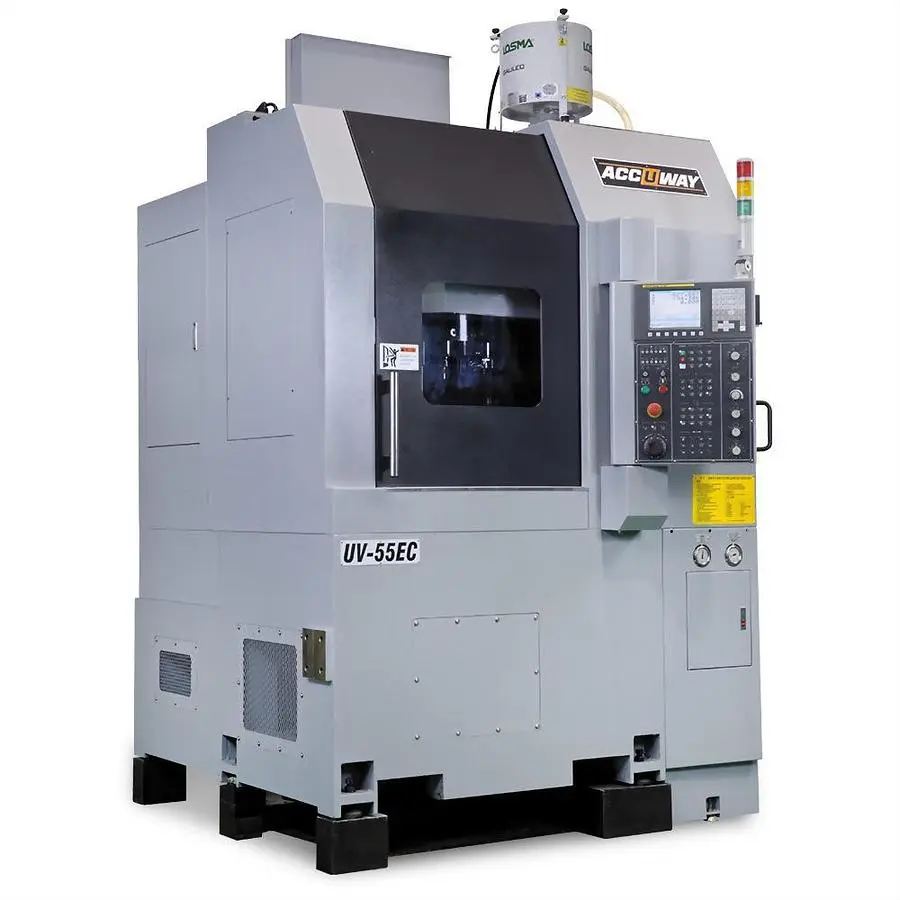

NEW ACCUWAY UV-55EC

Vertical Turning Center

STANDARD ACCESSORIES
FANUC 0i-T controller
RJ-45 interface
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Hydraulic power supply unit
Lubrication system
4-bar coolant system
Three-color warning light
Single chain type chip conveyor + chip cart
Tool kit

OPTIONAL ACCESSORIES
Upgrade to 15" Colored LCD monitor
Tool setter
Auto door
Oil mist collector
Oil-coolant skimmer
Air cooler for electric cabinet
Gearbox
Upgrade to non-through hole 3-jaw 15"  hydraulic chuck & cylinder
0 degree rotary tool holder
90 degree rotary tool holder
Transformer
CE version
Linear scale (Heidenhain)

Controller: FANUC 0i-T
Swing over bed: mm 750
Max. turning diameter: mm 550
Max. turning length: mm 550
Guide way type: Linear
Spindle nose taper: ASA A2-8
Chuck diameter: inch 12(15)
Spindle Speed: rpm 2500
Spindle drive system: Belt
Spindle Motor Power(Cont. /30min): kW 15/18.5
X-axis Travel: mm 295
Z-axis Travel: mm 550
X-axis Rapid Traverse Rate: m/min 20
Z-axis Rapid Traverse Rate: m/min 7
Tooling system: BMT
Turret driven type: Servo mechanical
Number of tools: station 12
Square tool shank size: mm 25
Round tool shank size: mm 40
Machine dimension L x W x H: m 2.3 x 3.0 x 3.0
Net weight: kg 5300
