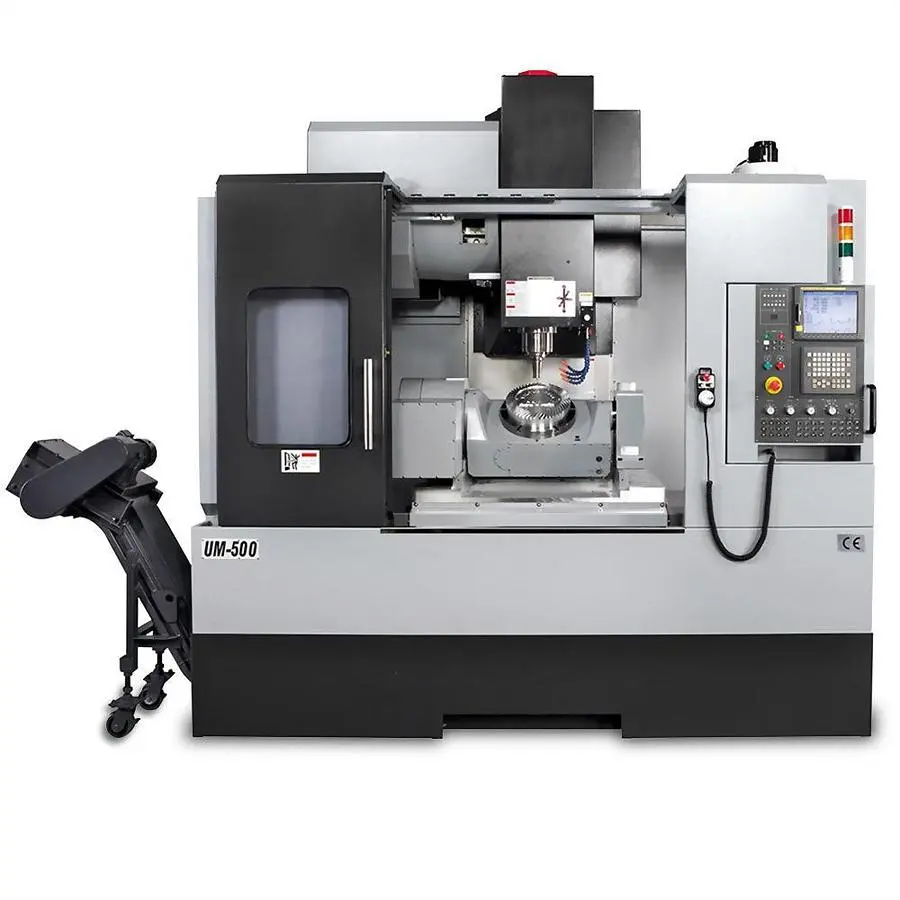

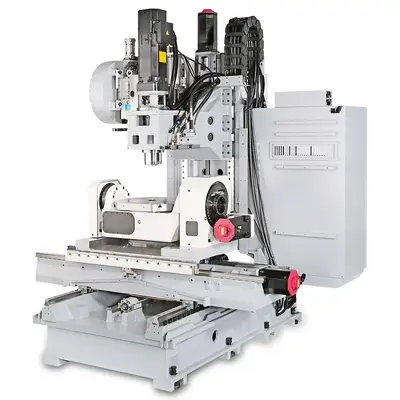

NEW ACCUWAY UM-500

5-Axis Vertical Machining Center

STANDARD ACCESSORIES
FANUC 0i-M controller + AICC II
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Cutter air blast
Spray gun
Three-color warning light
Spindle oil cooling system

OPTIONAL ACCESSORIES
Data server 2G
Linear scale (Heidenhain)
Contact tool setter
Workpiece touch probe
Spindle speed upgrading
Air cooler for electric cabinet
Upgrade to 15" Colored LCD monitor
20 bar Coolant through spindle system
Oil-coolant skimmer
Oil mist collector
Auto door
Chain type chip conveyor + chip cart
Transformer
CE version

Controller: FANUC 0i-M
Spindle speed: rpm 12000 (15000)
Spindle nose taper: BT40
Bearing inner diameter: mm 70
Drive system: Direct
X-axis travel: mm 1000
Y-axis travel: mm 650
Z-axis travel: mm 550
C-axis travel: degree 360
Max. speed of rotary axis (C-axis): rpm 16.6
Max. speed of tilting axis (A-axis): rpm 11.1
Max. table loading at 0°: kg 300
Max. table loading at 90°: kg 250
Spindle nose to table: mm 50~600
Table dimension: mm Ø500
Max. workpiece size: mm Ø500 x 300
T-slot size: mm 14
X-axis Rapid Traverse Rate: m / min 30
Y-axis Rapid Traverse Rate: m / min 30
Z-axis Rapid Traverse Rate: m / min 30
Cutting feed rate: m / min 12
Ball screw diameter (X/Y/Z): mm 45/45/45
Guideway bearing type: Roller
Tool magazine capacity: pcs 24(32/40)
Max. tool weight: kg 7
Max. tool diameter: mm 75
Max. tool diameter without adjacent tools: mm 150
Method of tool exchange: Arm type
Max. tool length: mm 300
Spindle motor power(Cont. / 30min): kW 7.5 / 11
X/Y/Z feed motor: kW 4/4/7
Coolant pump motor(50Hz/60Hz): kW 0.53+0.85/0.75+1.27
Air supply: kg/cm² 5.5
Machine dimension L x W x H: m 3 x 2.2 x 3.2
Net weight: kg 9000
