NEW SHIMADA-KITAKO VT4-350
Overview

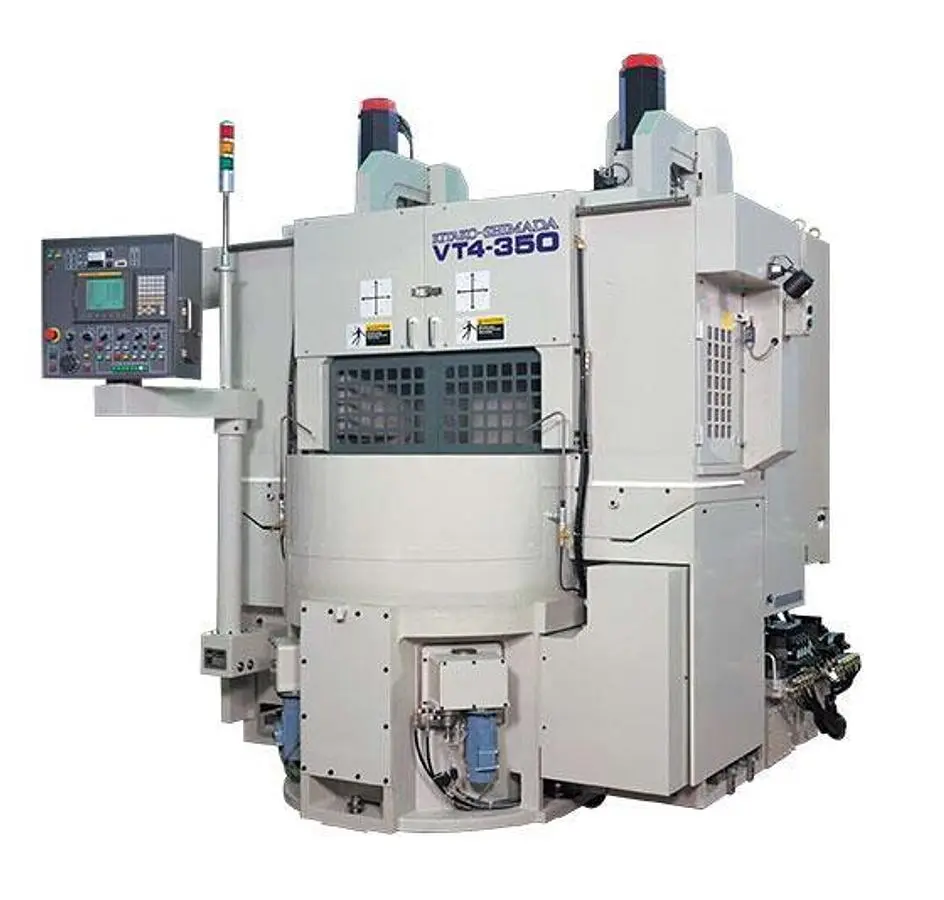

VT4-350 Productive CNC 4 Spindle Vertical Lathe
Part loading/unloading time is ZERO.
As a FM cell, the machine facilitates automization of a manufacturing line.
Vertical design enables handling of heavy workpieces.
Loading spindle is covered to protect from coolant and chips.
Spindle offset function compensates for earrors between spindles in the microns.
Spindle speeds can be independently controlled for each spindle.

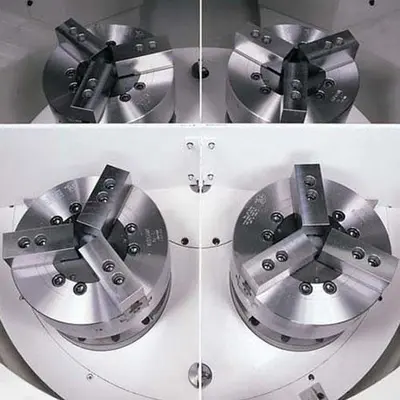

4 Spindle Unit, 2 Machine While 2 Are Loaded

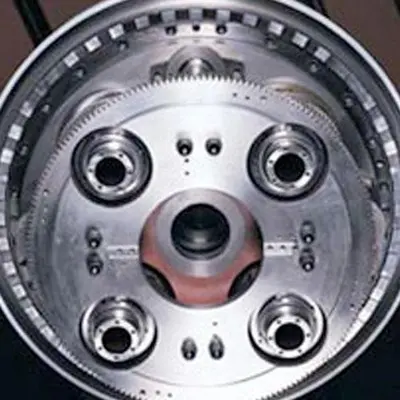

High Accuracy Indexing
Chip Conveyor

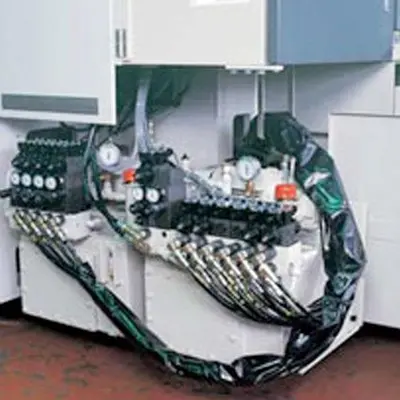

Hydraulic Unit

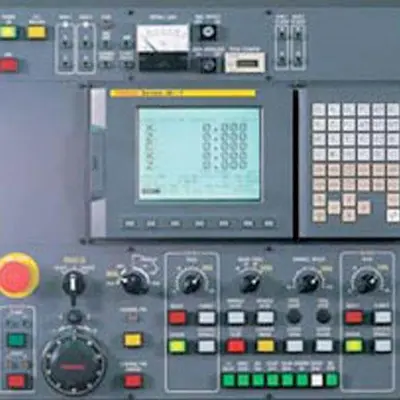

Centralized Operation Panel
Specs
Max. Turning Diameter: 13.8"
Max. Turning Length: 7.9"
X-Axis Stroke: 12"
Z-Axis Stroke: 18"
X-Axis Rapid Feed: 788"/min.
Z-Axis Rapid Feed: 788"/min.
Spindle Speed Range: 3200 rpm
Number of Spindles: 4
Spindle Nose: ASA A2-8
Carrier Index Time: 180° / 6.0sec. 90°/ 5.0sec.
Turret Tool Capacity: 8 (OD:4, ID:4)
