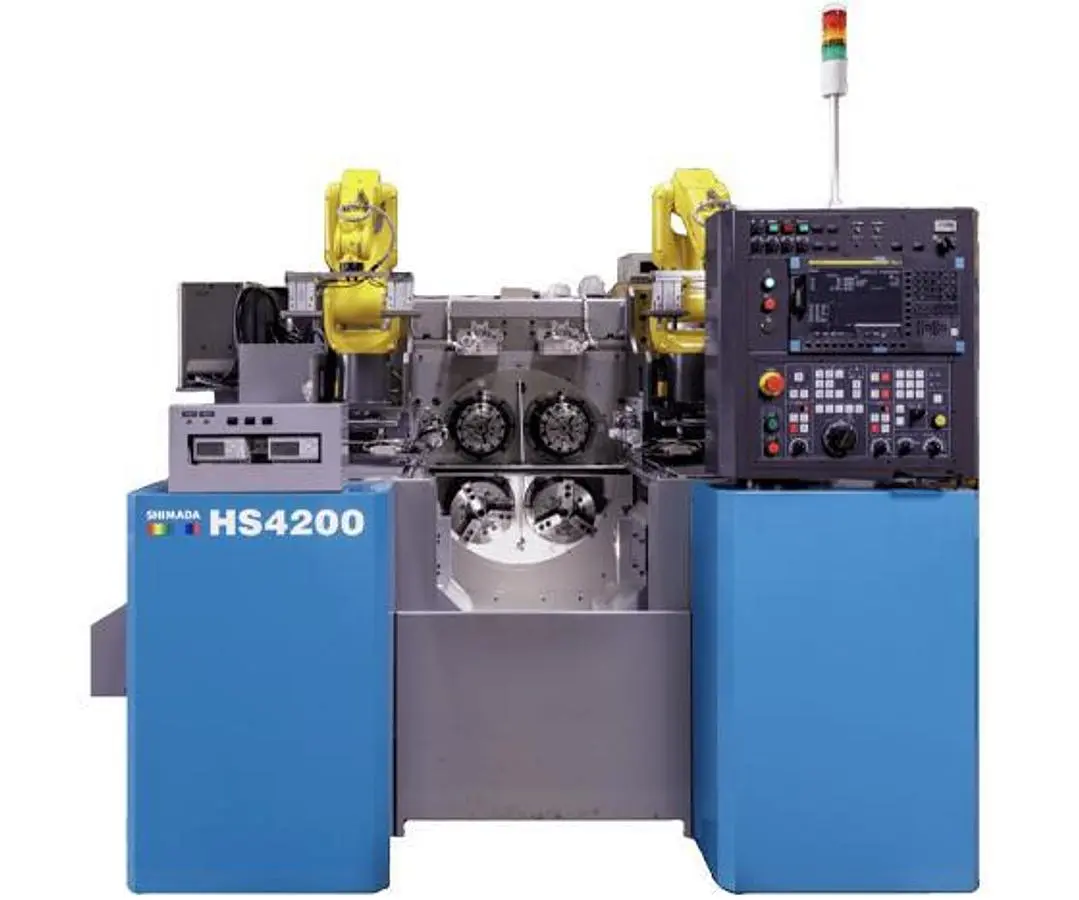

HS4200n Ultra High-Speed Production CNC Lathe with High-Speed Automatic Part Loading System
The newest version of the uniquely designed 4-spindle lathe.
By increasing the rapid feed rate on each axis, spindle idle time is greatly reduced, and efficiency has been increased.
Wide-ranging machine layouts and options are offered to meet a range of requirements.
HS4200n machine also available (with part loading system)

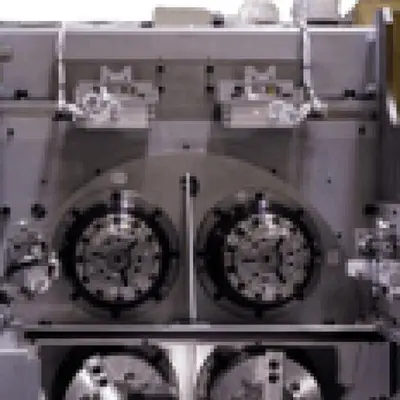

4-Spindle Drum Turret (2 Machining Spindles / 2 Loading Spindles)

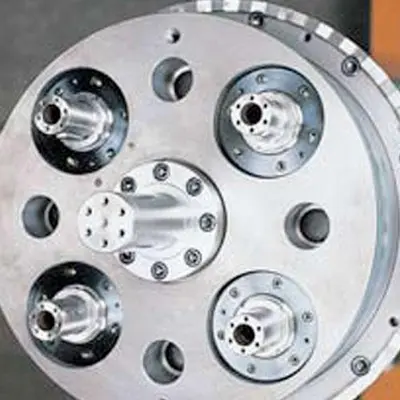

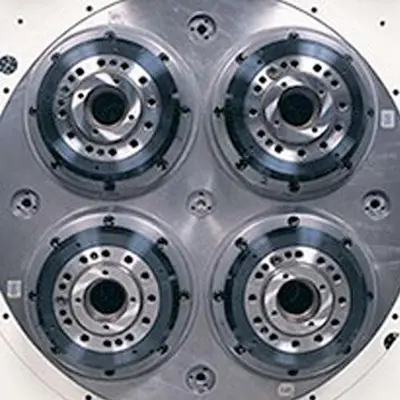

Spindles Mounted to Carrier Drum

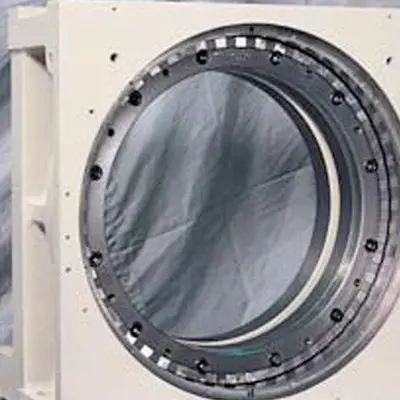

Large Curvic Coupling to Ensure Accuracy

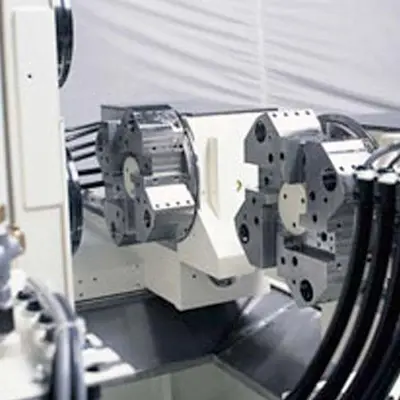

Standard 8-Station Tool Turrets (L side and R side)

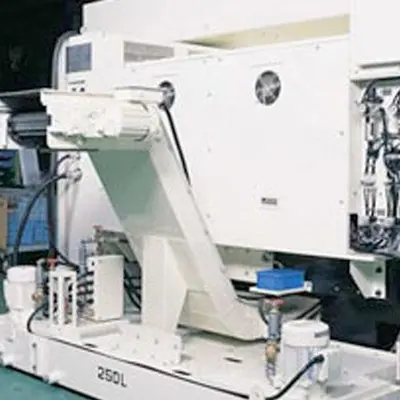

Chip Conveyor

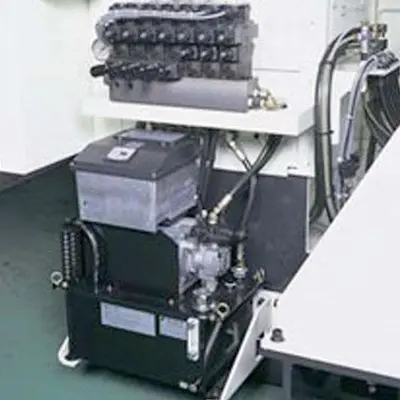

Hydraulic Unit

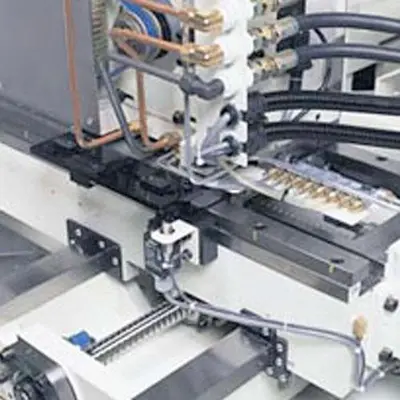

Box-Shaped Slideways
Work Reversing Unit
Loading/Unloading
Max. Turning Diameter and Length: 7.8" x 4"

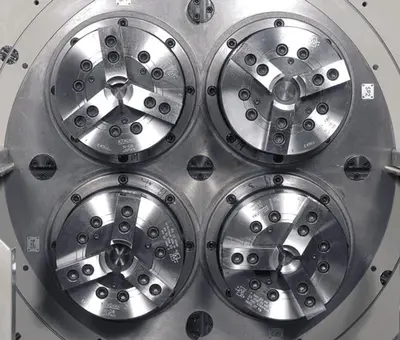

Chuck Size: 8"
Spindle Nose: A2-6
Spindle Motor: 15HP / 20HP
Maximum Spindle Speed: 4,500 rpm (Option: 5,000 rpm)
Carrier Index: 1.5 seconds / 180
X-Axis Travel: 6.3"
Z-Axis Travel: 9.8"
Rapid Traverse: 945 IPM (X), 1181 IPM (Z)
Turret: 8 Station Turret x 2
Turret Index: 0.3 second per Station
